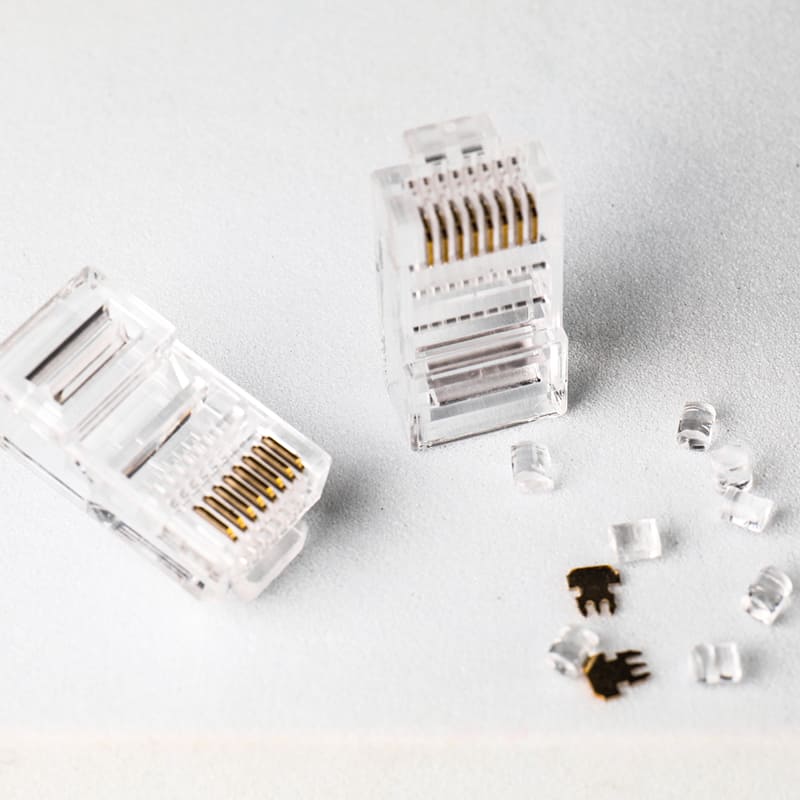

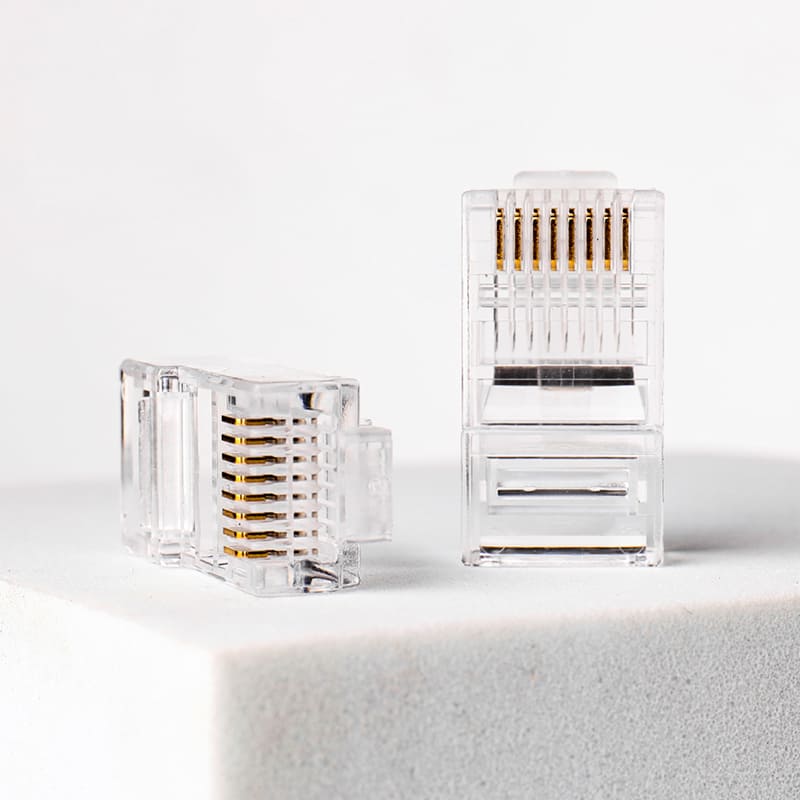

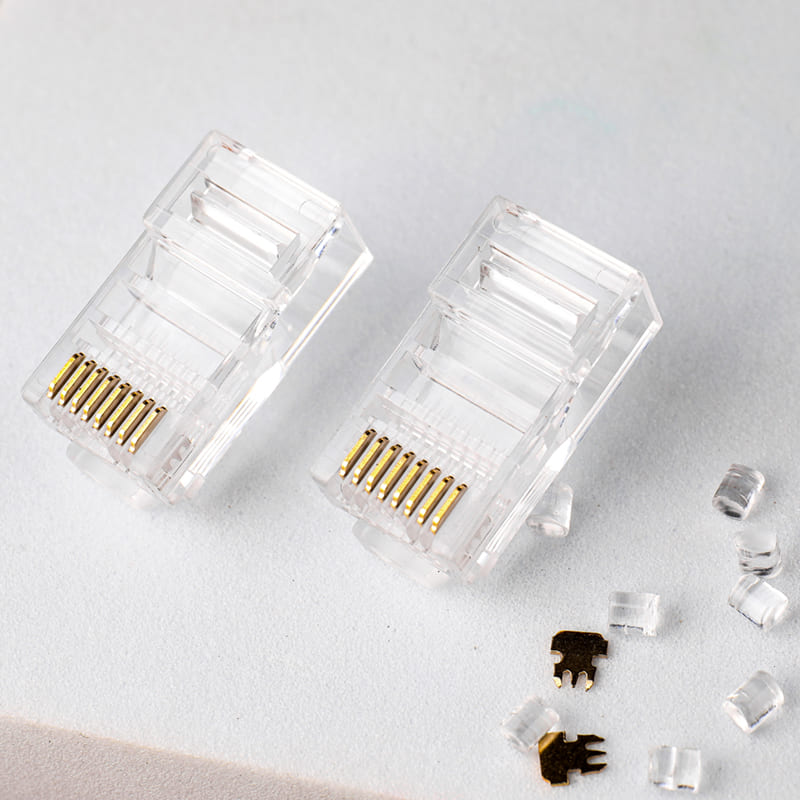

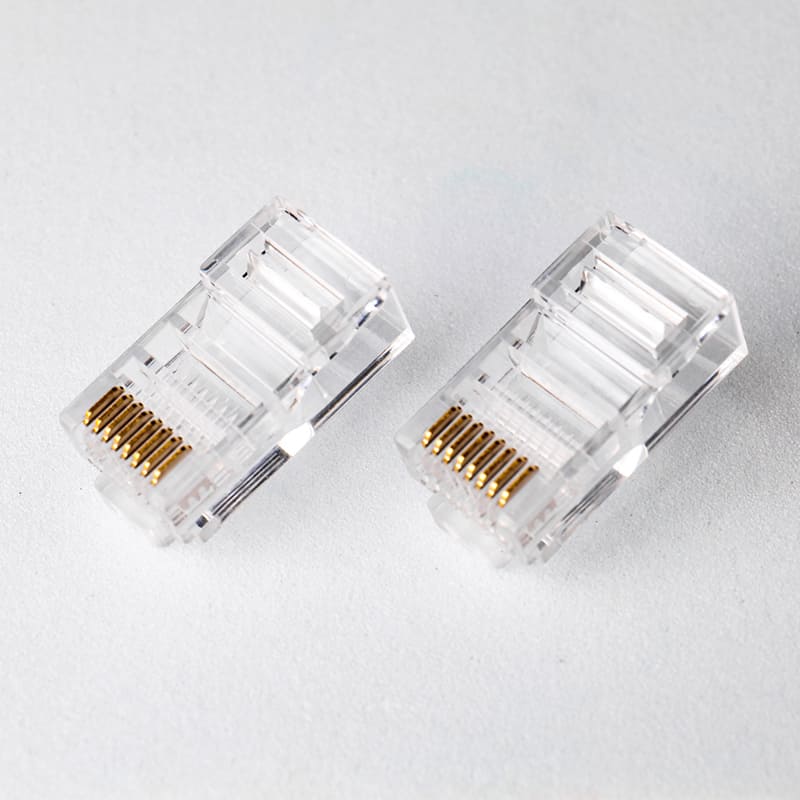

Unleash Network Potential with Cat5e UTP RJ45 Modular Plug
The Cat5e UTP RJ45 Modular Plug remains the backbone of most residential and commercial local area networks (LAN). While the world moves toward higher categories, the Cat5e standard continues to offer the most cost-effective solution for Gigabit Ethernet over copper. Our modular plugs are specifically designed to meet the rigorous demands of TIA/EIA-568-B standards, ensuring that your network infrastructure is both stable and efficient.
Advanced 50μ” Gold-Plated Contact Technology
The most critical component of any Cat5e UTP RJ45 Modular Plug is the contact point. Poor quality connectors often lead to “intermittent connectivity” or “packet loss” due to thin or low-quality plating. We use industrial-grade 50-micron gold plating over high-purity phosphor bronze. This thick plating provides several key benefits:
-
Oxidation Resistance: Prevents the “green rust” common in humid environments.
-
Wear Resistance: Tested to withstand over 750 insertion and withdrawal cycles.
-
Low Impedance: Ensures clean data transmission even over longer cable runs.
Technical Specifications (Mobile-Optimized Table)
| Technical Parameter | Specification Detail |
| Product Model | HX-C5E-UTP-GP |
| Category Standard | Category 5e (Cat5e) |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Interface Type | RJ45 8P8C |
| Gold Plating Thickness | 3μ”, 6μ”, 15μ”, 30μ”, 50μ” (Optional) |
| Housing Material | High-Impact Polycarbonate (Clear) |
| Terminal Type | 3-Prong (Fits Solid & Stranded) |
| Supported Wire Gauge | 24 AWG – 26 AWG |
| Frequency Support | 100 MHz |
| Data Rate Support | Up to 1 Gbps |
| Compliance | RoHS, REACH, UL 94V-2 |
The “3-Prong” Advantage for Cat5e UTP RJ45 Modular Plug
A common issue during DIY network installation is poor contact between the plug and the copper conductor. Our Cat5e UTP RJ45 Modular Plug utilizes a professional three-prong (3-Prong) design. Unlike the standard two-prong style, the three-prong contact straddles the wire, creating a larger surface area for connection. This makes it universally compatible with both Solid copper wires (found in walls) and Stranded copper wires (used for patch cables).
Installation Best Practices
To achieve the highest SEO performance and network reliability, the installation of the Cat5e UTP RJ45 Modular Plug must be precise:
-
Stripping: Carefully remove the outer jacket without nicking the internal pairs.
-
Untwisting: Maintain the twist of the pairs as close to the plug as possible to reduce “Crosstalk.”
-
Alignment: Arrange the wires into the T568B or T568A color sequence.
-
Insertion: Push the wires into the Cat5e UTP RJ45 Modular Plug until the tips are visible through the clear front of the housing.
-
Crimping: Use a high-quality RJ45 crimping tool to ensure the gold-plated pins penetrate the insulation properly.
Diverse Application Environments
Whether you are wiring a home smart TV setup, an office workstation, or a large-scale data center, the Cat5e UTP RJ45 Modular Plug is the go-to choice. Its unshielded design is lightweight, easy to terminate, and perfect for environments where electromagnetic interference is not a major concern. Because of its clear polycarbonate body, technicians can easily verify wire placement before crimping, significantly reducing installation errors and material waste.
By choosing our premium Cat5e UTP RJ45 Modular Plug, you are choosing a product that has undergone rigorous quality control to ensure every connection is a professional one.
