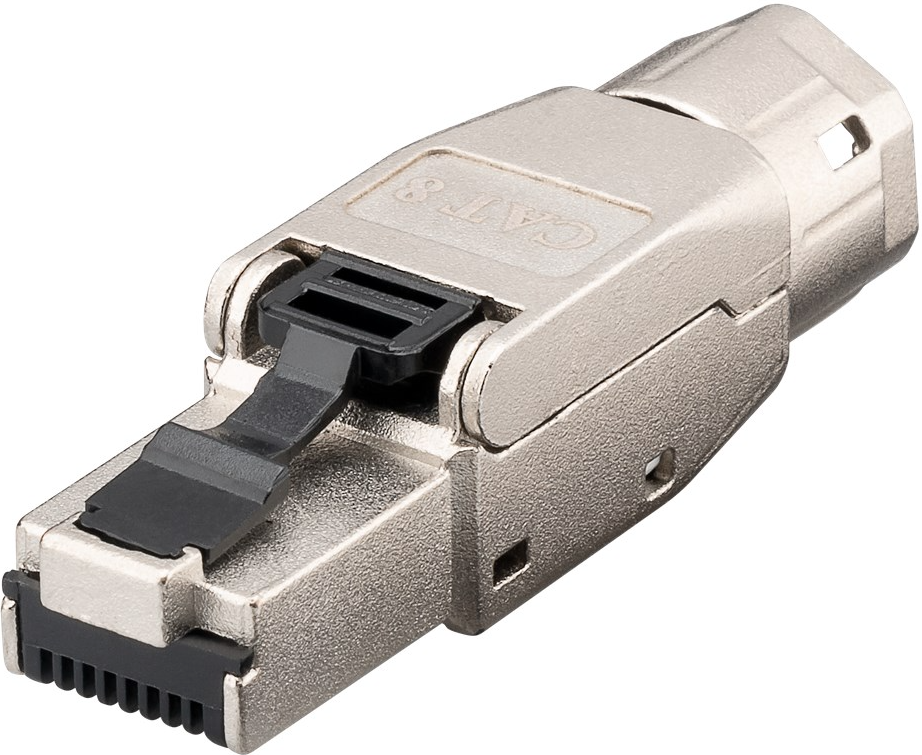

Cat8 Tool-Free RJ45 Connector – 40Gbps 2000MHz Shielded Zinc Alloy Field Termination Plug with Customizable Branding

Next-Gen 40Gbps Performance: The Cat8 Tool-Free RJ45 Connector is fully compliant with Category 8 standards, supporting 40Gbps speeds and 2000MHz bandwidth.
Effortless Field Termination: No crimping tool required. The intuitive tool-free design allows for fast, reliable connections in the field, reducing labor time and costs.
Zinc Alloy Shielding: Encased in a heavy-duty zinc alloy die-cast housing that provides 360-degree EMI/RFI protection and extreme physical durability.
Wide Cable Compatibility: Designed to handle thick-gauge wires from 22AWG to 26AWG, making it the perfect match for shielded Cat8 S/FTP infrastructure.
PoE++ (Type 4) Support: Optimized for high-power applications, ensuring safe and stable delivery of up to 90W for Wi-Fi 7 access points and PTZ cameras.
Fully Customizable: We offer comprehensive OEM/ODM services, including custom laser-engraved logos, specialized colors, and bespoke retail packaging.

Description

The Future of High-Speed Termination: Cat8 Tool-Free RJ45 Connector

The Cat8 Tool-Free RJ45 Connector is the ultimate solution for high-performance network infrastructure. As data centers and enterprise networks transition to 40GBASE-T, traditional crimp-style connectors are often unable to handle the precision and shielding required for 2000MHz bandwidth. Our Cat8 field termination plug is engineered to provide an industrial-strength connection that is both easy to install and capable of maintaining peak signal integrity in the most demanding environments.

Why Field Termination is the Professional Choice

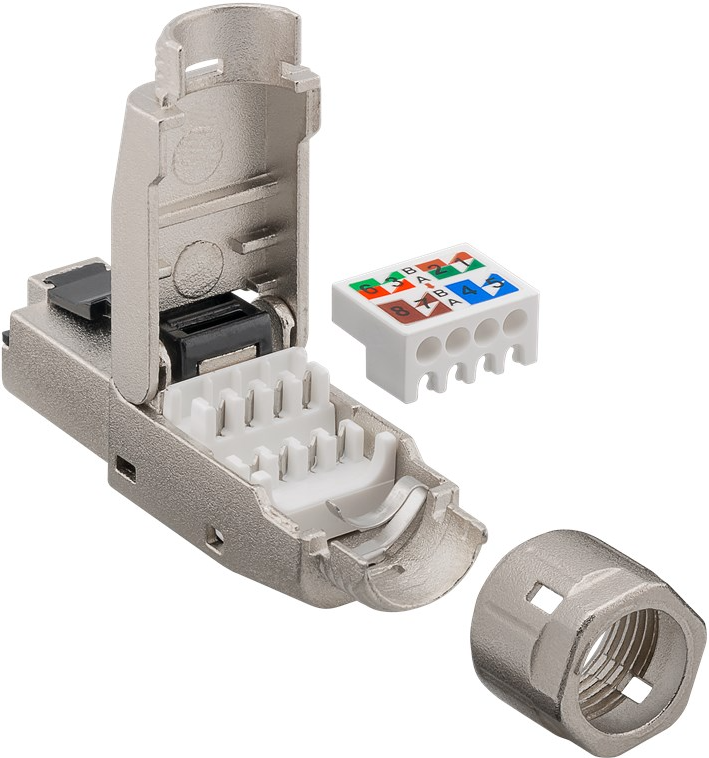

Traditional RJ45 connectors require specialized crimping tools and high levels of technician skill to achieve a perfect seat. The Cat8 Tool-Free RJ45 Connector eliminates this complexity. Its hinged design and internal wire manager guide each conductor into the exact position required. This ensures that the wire twists are maintained as close to the contacts as possible—a critical requirement for passing rigorous Fluke testing. Whether you are repairing a broken link in a server rack or building a custom-length patch cord on-site, this tool-free plug guarantees a professional result every time.

Technical Specifications (Mobile-Optimized Table)

Feature	Specification Details
Product Name	Cat8 Tool-Free RJ45 Connector
Category Rating	Category 8 (Cat8)
Data Rate	Up to 40 Gbps
Bandwidth	Up to 2000 MHz
Shielding Type	Shielded (Zinc Alloy Die-Cast)
Conductor Support	22 AWG – 26 AWG (Solid/Stranded)
Contact Plating	50u Gold Plating on Phosphor Bronze
PoE Support	PoE++ (IEEE 802.3bt Type 4 / 90W)
Mating Cycles	Tested for over 750 Insertions
Customization	Logo, Color, Packaging (OEM/ODM)
Compliance	RoHS, REACH, TIA/EIA 568-C.2

Zinc Alloy Shielding for Maximum Signal Purity

Electronic noise (EMI/RFI) is the primary cause of packet loss in high-speed networks. The Cat8 Tool-Free RJ45 Connector is fully encased in a nickel-plated zinc alloy shell. This metal housing acts as a continuous Faraday cage, grounding the cable’s drain wire and protecting the signal from external interference. This is particularly vital in industrial settings or high-density data centers where cables are bundled closely together. The robust metal build also provides superior heat dissipation for high-power PoE++ applications, preventing the connector from overheating during continuous 90W power delivery.

Industrial Durability and High-Power Support

Performance starts with materials. Every Cat8 Tool-Free RJ45 Connector we produce features 50-micron gold-plated contacts on high-quality phosphor bronze. This thickness ensures that the connection point remains free from oxidation and maintains low resistance over its lifetime. The connector is rated for 750+ insertion cycles, making it suitable for environments where equipment is frequently moved or upgraded. Its support for PoE++ makes it the go-to choice for the next generation of IoT devices, high-capacity Wi-Fi 7 access points, and advanced security imaging systems.

Customization for Your Brand (OEM/ODM)

We specialize in providing tailored solutions for wholesalers and infrastructure brands. Our Cat8 Tool-Free RJ45 Connector is fully customizable. We can laser-engrave your corporate logo directly onto the zinc alloy shell for a premium, high-end look. Furthermore, we offer custom-colored cable boots and specialized bulk or retail packaging to match your brand’s market positioning. By choosing our customizable solutions, you are investing in a product that combines top-tier performance with your unique brand identity.

Simple 5-Step Installation Guide

To ensure the highest performance with your Cat8 Tool-Free RJ45 Connector, follow these steps:

Preparation: Strip about 30mm of the Cat8 cable jacket and fold back the shield and drain wire.
Wiring: Place the wires into the internal wire management bar according to the T568B color code.
Trimming: Trim the excess wires flush against the edge of the bar.
Closing: Insert the bar into the connector body and close the hinged zinc alloy housing.
Securing: Tighten the screw-on boot at the rear to secure the cable and ensure a stable ground connection.

Applications and Future-Proofing

From 40G server interconnects to high-fidelity smart home systems, the Cat8 Tool-Free RJ45 Connector provides the reliability needed for the next decade of data growth. It is backward compatible with Cat6A, Cat6, and Cat5e, ensuring that your investment works with your current hardware while being ready for the ultra-fast equipment of the future.
