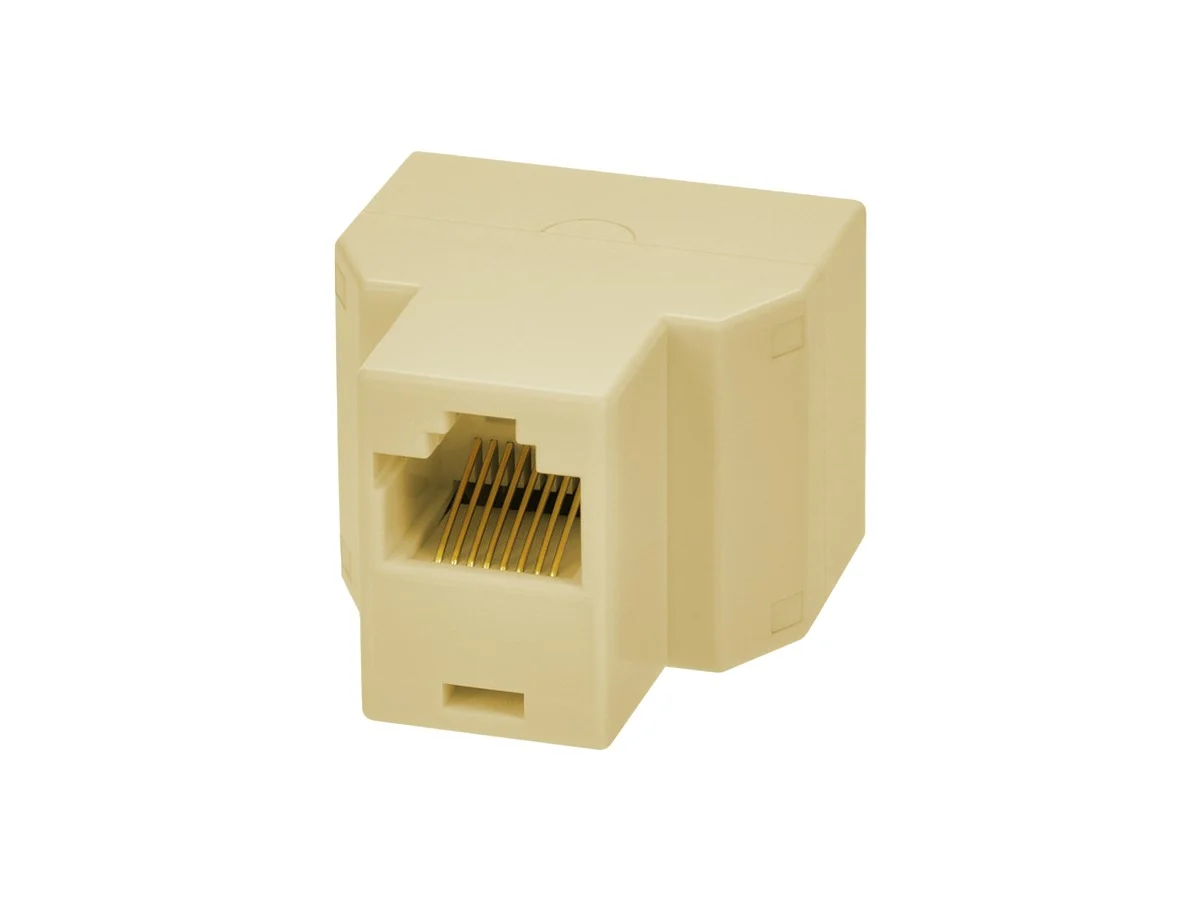

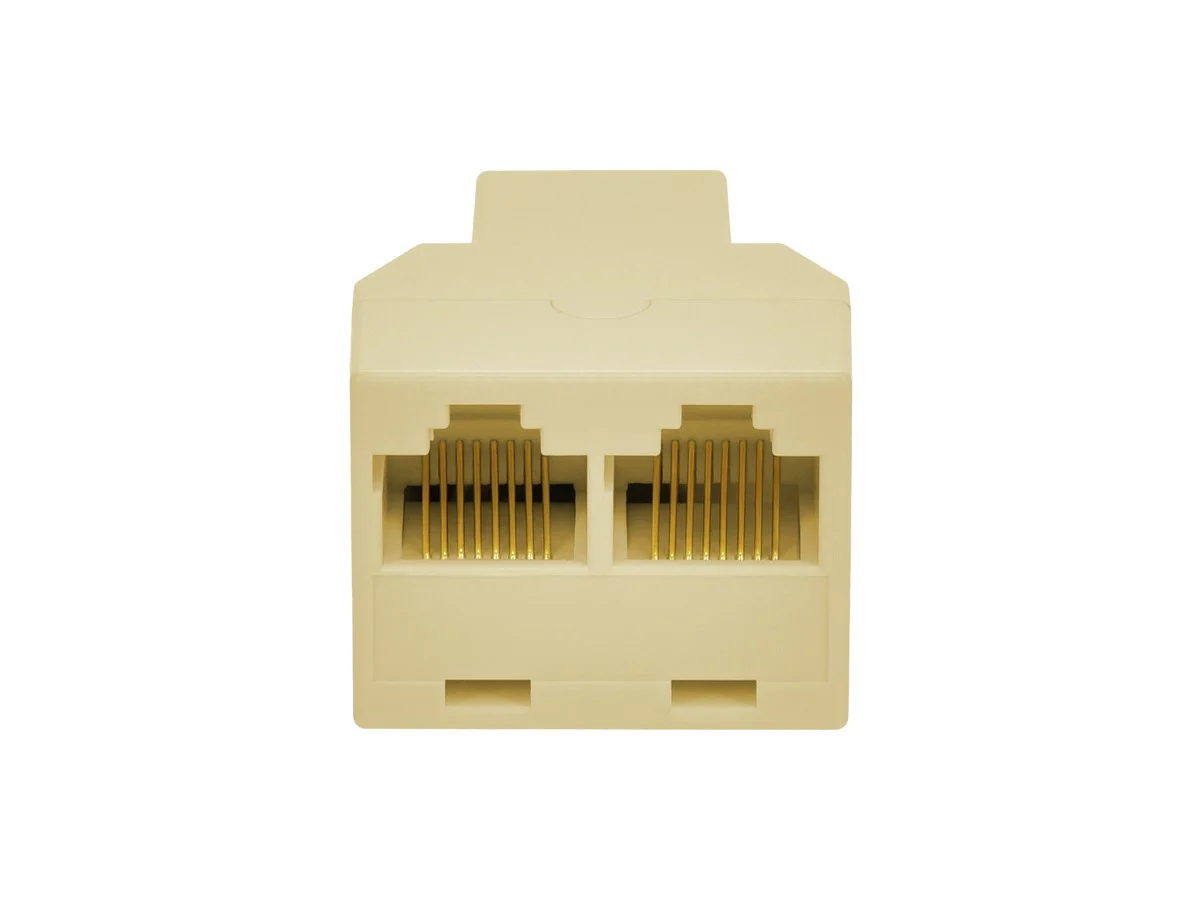

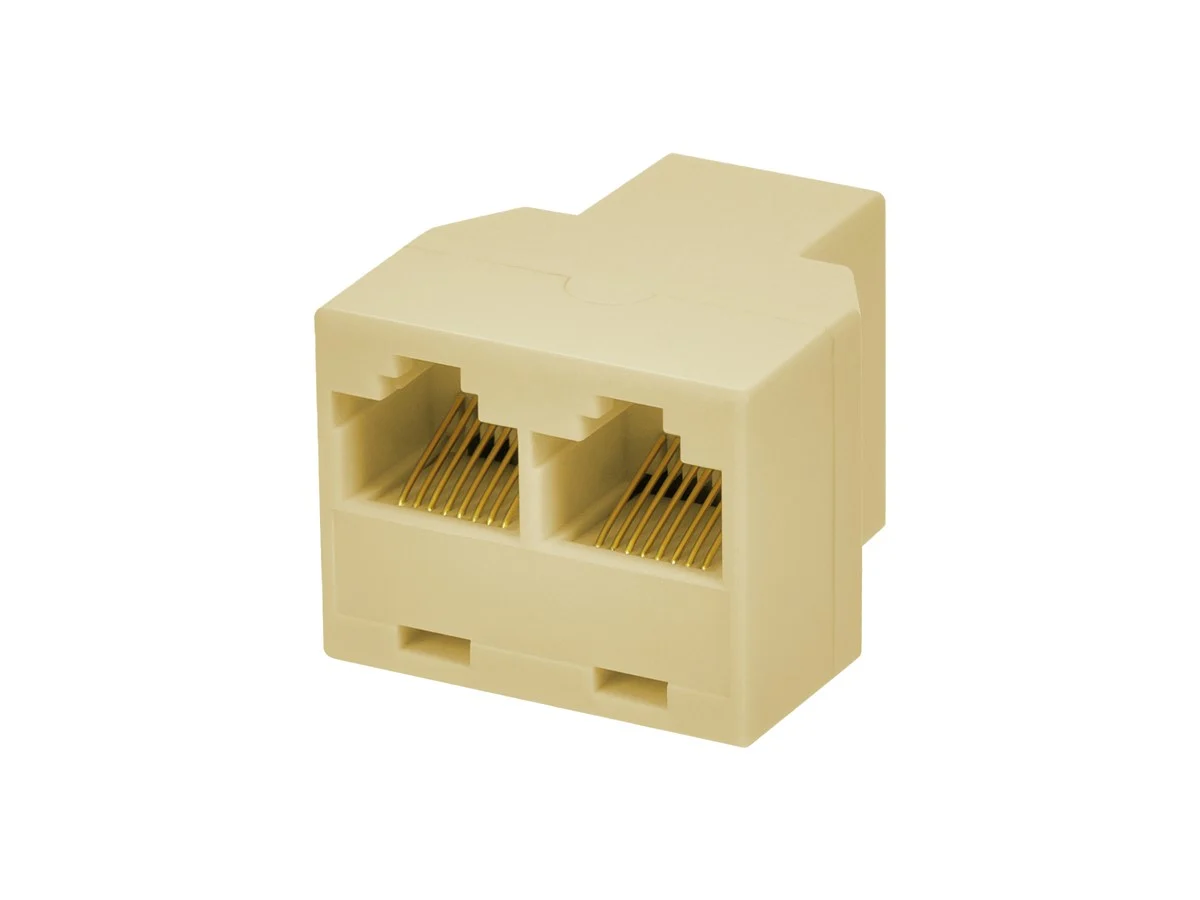

RJ45 8P8C Modular T-Adapter Female to 2 Female – Straight-Through Parallel Connection Splitter with Customizable Housing and Pinout

Industrial-Grade Connectivity: The RJ45 T-Adapter Female to 2 Female

The RJ45 T-Adapter Female to 2 Female is an essential component for telecommunications and specialized networking environments. Unlike active hubs or switches, this modular T-adapter provides a simple, passive way to duplicate an RJ45 connection. Designed specifically as a “Straight-Through” or parallel adapter, it maps all eight pins of the input female port to the corresponding pins of both output female ports. This makes it an invaluable tool for engineers and IT professionals who need to bridge connections in telephone systems, security setups, or experimental signal routing.

Understanding the Straight-Through Advantage

In the world of networking, not all splitters are equal. Our RJ45 T-Adapter Female to 2 Female utilizes a straight-through (1:1) wiring logic. This means that Pin 1 of the input port is connected to Pin 1 of both output jacks. This parallel configuration is primarily used for voice applications (POTS/VOIP), RS232/RS485 serial communication over RJ45, and signal monitoring. By maintaining a 1-to-1 pinout across all 8P8C contacts, this adapter ensures transparency for the signals passing through it.

Technical Specifications (Mobile-Optimized Table)

Engineered for Durability and Performance

Quality is at the core of our manufacturing process. The RJ45 T-Adapter Female to 2 Female is encased in a precision-molded ABS shell that is both lightweight and incredibly durable. The internal PCB (Printed Circuit Board) is designed to minimize signal reflection and cross-talk, which is often a problem in low-quality molded splitters. Furthermore, the 8P8C contacts are treated with a deep 50-micron gold layer. This prevents the “pitting” and corrosion that occurs in high-humidity environments, ensuring that your connection remains stable over years of use.

Flexible Customization for Your Brand (OEM/ODM)

We specialize in providing tailored solutions for infrastructure providers. Our RJ45 T-Adapter Female to 2 Female can be modified to meet your specific brand requirements. We offer:

• Custom Branding: High-precision silk-screened or laser-etched logos on the adapter body.

• Specialized Colors: Match your company’s hardware aesthetic with custom housing colors.

• Modified Wiring: If your project requires a non-standard pinout (such as splitting 1-2-3-6 and 4-5-7-8), our engineering team can provide a custom internal PCB design.

• Packaging Solutions: From bulk industrial packing to retail-ready blister packs with custom inserts.

Critical Usage Note

When using the RJ45 T-Adapter Female to 2 Female for standard Ethernet data networks, it is important to remember that this is a passive parallel splitter. It is not a substitute for a network switch. In a parallel straight-through configuration, you cannot use this to connect two computers to a single router port for simultaneous internet access. For such a use case, a “pair” of data splitters or an active network switch is required. This adapter is best suited for voice, serial, or signal duplication where a parallel electrical path is desired.

Typical Applications

• Telecommunications: Splitting a single phone line into two handsets or a handset and a fax machine.

• Security Systems: Connecting two IP cameras (sharing specific signal pins) or alarm sensors.

• Testing & Measurement: Tapping into a data stream for signal analysis without breaking the circuit.

• Digital Signage: Distributing RS232 control signals over RJ45 to multiple displays.

By choosing our RJ45 T-Adapter Female to 2 Female, you are investing in a high-quality, professional-grade component that balances industrial reliability with the ultimate flexibility of complete customization.
