Protecting Your Link Integrity: Shield-Plus Cat5e Shielded RJ45 Connector 50u
In modern industrial automation, outdoor surveillance, and crowded server rooms, unshielded connectors are often the weakest link in the network. The Shielded Cat5e RJ45 Connector 50u from HXPLUG’s Shield-Plus series is designed to act as a physical and electrical fortress for your data. While standard plastic connectors are vulnerable to electromagnetic interference (EMI) from power lines and machinery, our shielded modular plug provides a grounded path that drains away electronic noise before it can corrupt your packets. At HXPLUG, we understand that “Good Enough” is not an option for mission-critical infrastructure.
Material Science: The Nickel-Plated Brass Advantage

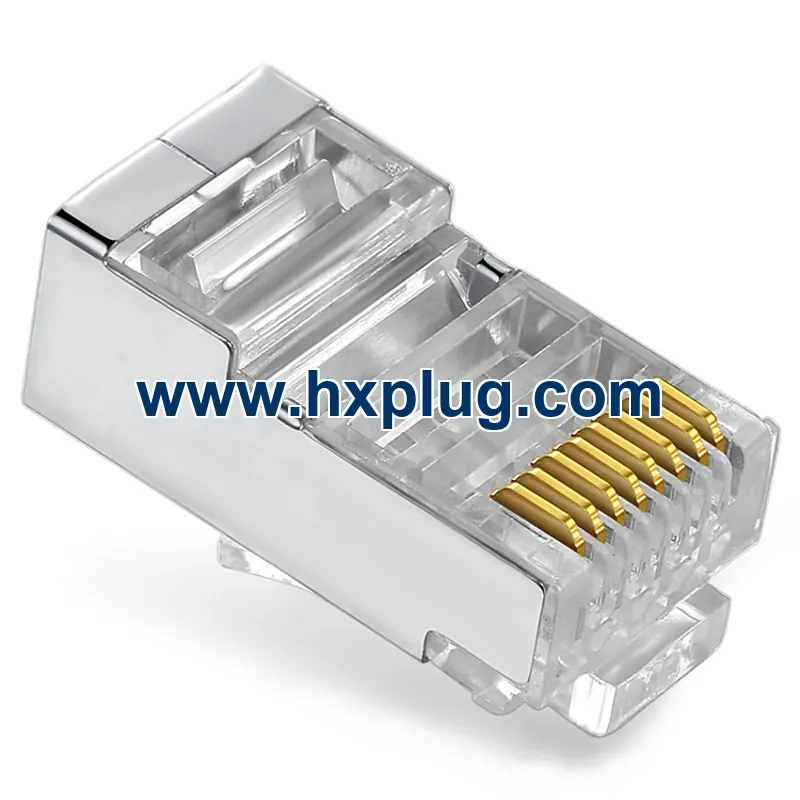

The defining feature of the Shielded Cat5e RJ45 Connector 50u is its external shell. We utilize a precision-stamped brass casing that is deeply nickel-plated. This isn’t just for a premium look; it’s a functional requirement for high-interference environments. The metal casing creates a Faraday Cage effect, neutralizing radio frequency interference (RFI) that typically causes “jitter” and signal drop-offs in standard Cat5e links. By choosing a metal-shielded connector, you are investing in a link that remains stable even when routed alongside high-voltage electrical conduits.
Technical Specifications (Mobile-Optimized Table)
| Feature | Specification Details |
| Product Name | Shield-Plus Cat5e Shielded RJ45 Connector |
| Brand | HXPLUG |
| Modular Category | Category 5e (Cat5e) Shielded |
| Interface Type | RJ45 8P8C |
| Shielding Material | Nickel-Plated Brass Shell |
| Housing Material | High-Impact Polycarbonate (Clear) |
| Contact Material | Phosphor Bronze (3-Prong Blade) |
| Contact Plating | Industrial 50u Gold over Nickel |
| Wire Compatibility | 24 AWG – 26 AWG (Solid & Stranded) |
| Mating Cycles | Over 750 Insertions |
| Standards | RoHS, REACH, TIA/EIA 568-C.2, FCC |
Optimized Grounding for STP and FTP Applications
A shielded cable is only effective if it is correctly grounded. HXPLUG’s Shielded Cat5e RJ45 Connector 50u features a specialized external ground tab designed to bond with the drain wire or foil shield of your STP/FTP cable. This creates a seamless conductive path from the cable all the way to the grounded switch port. This is especially critical for outdoor IP camera installations and outdoor wireless access points, where environmental electrical surges and static buildup can destroy sensitive internal components if not properly discharged through a grounded connector.
Precision Terminations for the Modern Technician
Termination efficiency is at the heart of our design. The internal wire management of the Shielded Cat5e RJ45 Connector 50u is spaced for high-accuracy alignment, allowing technicians to visually verify the T568A or T568B color code through the clear polycarbonate housing before crimping. Our universal 3-prong contact blades provide a superior “bite” into the copper conductors, whether you are using solid core installation cable or highly flexible stranded patch cord. This versatility makes the HXPLUG Shield-Plus series the preferred choice for both field-terminations and factory OEM cable production.
Professional OEM/ODM Services for Global Infrastructure
HXPLUG is a trusted partner for B2B distributors, security system integrators, and industrial hardware brands. The Shielded Cat5e RJ45 Connector 50u is available with full customization options:
-
Tailored Packaging: From bulk 100-piece eco-friendly bags for professional contractors to retail-ready blister packs with your custom branding.
-
Logo Integration: For large-scale industrial orders, we offer custom laser-marking on the metal shield or specialized mold-logo options.
-
Material Customization: Choose from different UL-rated plastics (94V-2 or 94V-0) to meet specific fire-safety requirements in commercial buildings.
Diverse Application Scenarios
The ruggedized, shielded nature of the HXPLUG Shield-Plus series makes it indispensable for:
-
Industrial Automation: Reliable PLC and sensor data near heavy motors and relays.
-
Outdoor IP Surveillance: Shielding camera links from static and external EMI.
-
High-Density Server Racks: Preventing “Alien Crosstalk” between adjacent ports in legacy systems.
-
Marine & Harsh Environments: The nickel plating provides a layer of corrosion resistance for stable long-term use.
By selecting the Shielded Cat5e RJ45 Connector 50u from HXPLUG, you are choosing a precision-engineered component that bridges the gap between legacy infrastructure and industrial-grade reliability.
