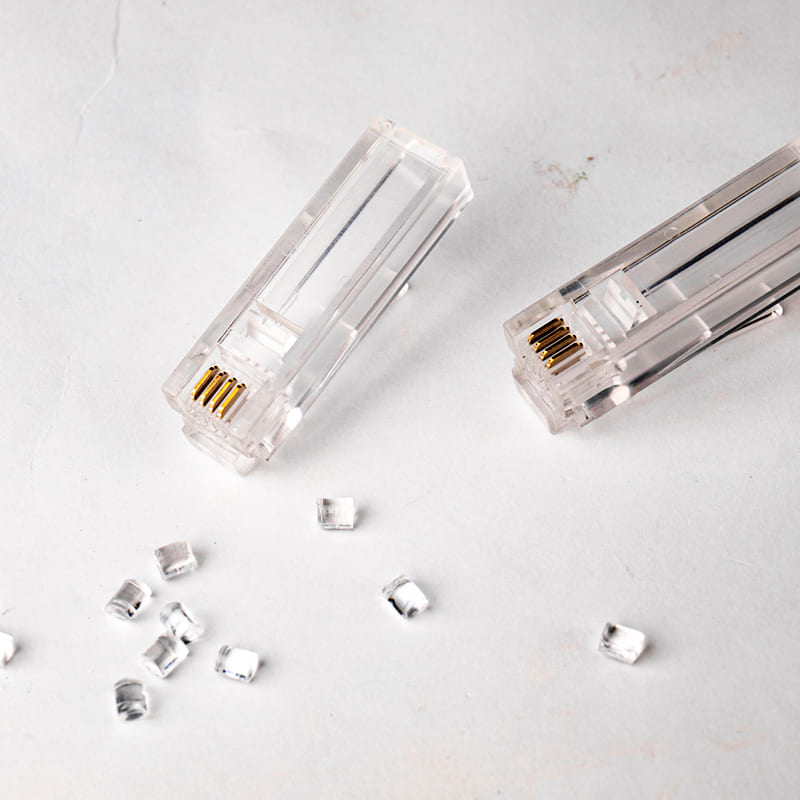

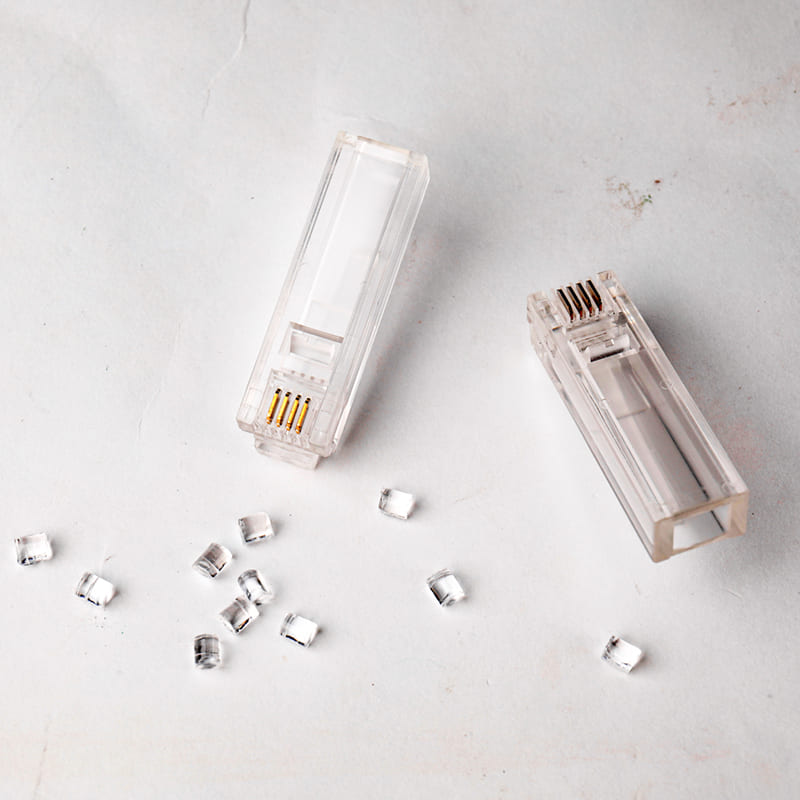

6P4C RJ11 Extended Modular Plug with Long Body Design for Easy Grip

Terminated 6P4C Extended Plug into a Recessed Telephone Wall Jack

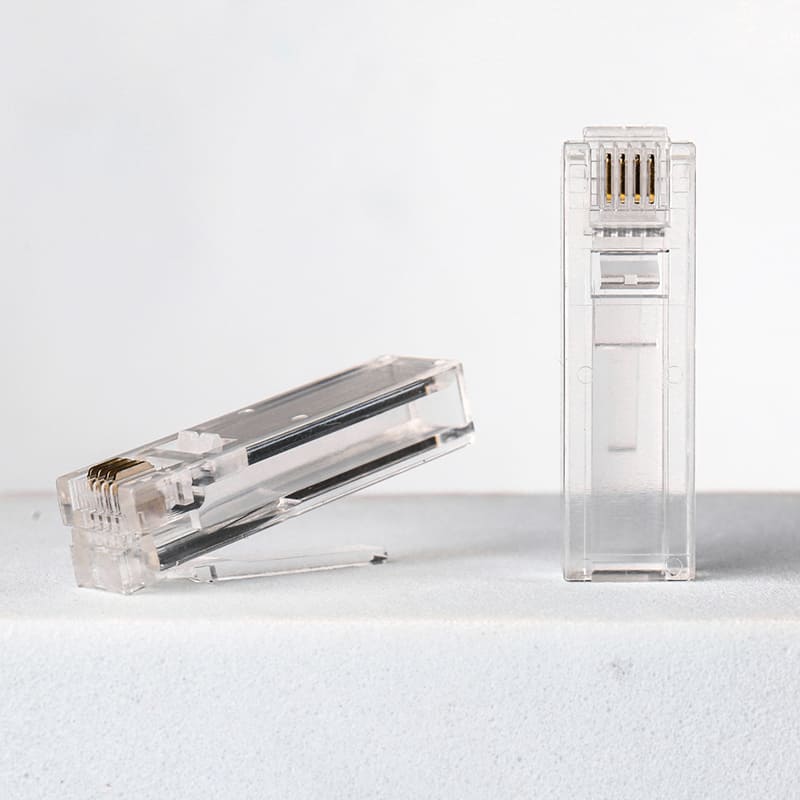

Comparison between Standard RJ11 and 6P4C Extended Long Body Plug

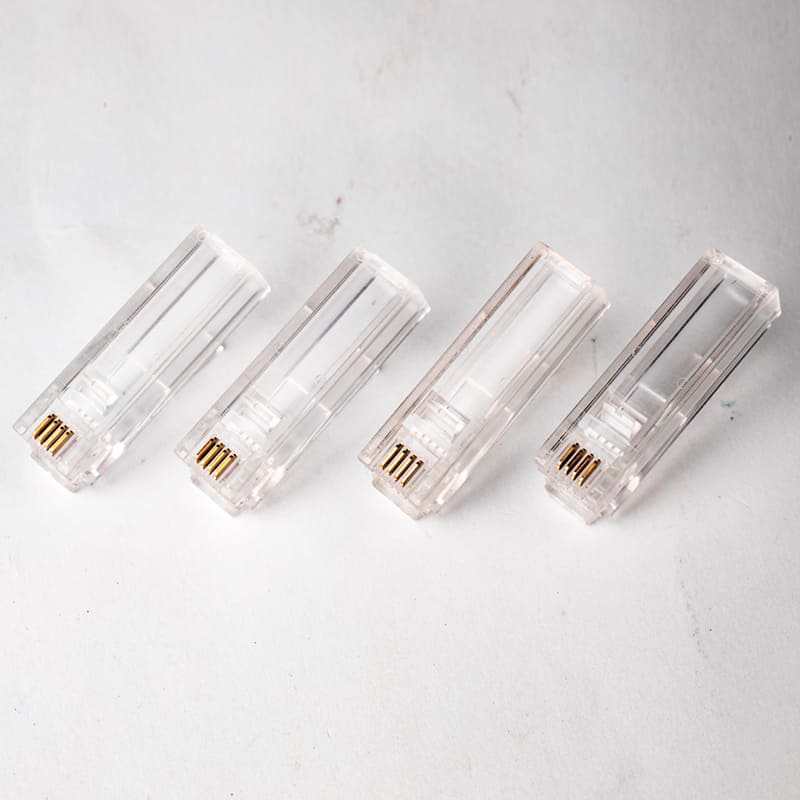

50 Micron Gold-Plated 3-Prong Pins on 6P4C Extended Connector

6P4C RJ11 Extended Modular Plug – Premium Long Body 4-Conductor Telephone Connector with 50μ” Gold Plating

Extended Body Design: Features a longer housing for easier insertion and removal, especially in recessed ports or tight spaces.
High-Conductivity Contacts: Equipped with 50μ” gold-plated phosphor bronze terminals to prevent corrosion and ensure crystal-clear voice transmission.
Versatile 4-Conductor Layout: Standard 6P4C configuration supports both single-line (RJ11) and dual-line (RJ14) telephone systems.
Crystal Clear Polycarbonate: Manufactured from high-impact, UL 94V-2 rated PC material for maximum durability and visibility.
Universal Compatibility: Works flawlessly with standard 24-28 AWG flat or round telephone wires used in DSL, Fax, and PBX systems.

Description

Redefining Connectivity: The 6P4C RJ11 Extended Modular Plug

The 6P4C RJ11 Extended Modular Plug is a specialized telecommunications connector designed to overcome the limitations of standard-length RJ11 plugs. In many modern VoIP adapters, DSL filters, and recessed wall plates, a standard plug can be difficult to grip or might not seat securely. Our “Long Body” version provides the extra leverage needed for a secure “click” every time, making it the preferred choice for professional telecom installers and IT maintenance teams.

Why the “Extended” Version is Essential

Most 6P4C connectors on the market follow a compact design, which saves space but often sacrifices ease of use. The 6P4C RJ11 Extended Modular Plug features an elongated rear housing. This extra length serves two critical purposes:

Improved Grip: Technicians can easily grasp the plug to disconnect it without pulling on the fragile telephone wire.
Strain Relief: The longer body provides better support for the cable entry point, reducing the risk of internal wire breakage near the crimp site.

Technical Specifications (Mobile-Optimized)

Feature	Specification Details
Product Model	HX-6P4C-EXT-50U
Connector Type	6P4C (6 Position, 4 Contact)
Compatible Standards	RJ11, RJ14
Housing Design	Extended / Long Body
Gold Plating	Premium 50μ” Gold Over Nickel
Housing Material	High-Impact Polycarbonate (Clear)
Contact Material	Phosphor Bronze (3-Prong Design)
Wire Gauge Support	24AWG, 26AWG, 28AWG
Insulation Diameter	0.96mm – 1.02mm
Flammability Rating	UL 94V-2 / UL 94V-0
Application	DSL, ADSL, Fax, PBX, PSTN

Engineered for Signal Integrity

Telephone lines are susceptible to noise and oxidation, which can lead to dropped calls or slow DSL speeds. To combat this, our 6P4C RJ11 Extended Modular Plug utilizes industrial-grade 50-micron gold plating. This is significantly thicker than the standard 3μ” or 6μ” plating found in consumer-grade alternatives. The result is a contact surface that remains highly conductive and resistant to atmospheric corrosion for decades.

Furthermore, the 3-prong contact design ensures that the terminal pin pierces the wire insulation and makes a broad, stable contact with the copper core, whether you are using stranded or solid conductors.

Professional Installation Steps

Terminating the 6P4C RJ11 Extended Modular Plug is straightforward but requires precision:

Cable Prep: Strip approximately 15mm of the outer jacket from your 4-conductor telephone wire.
Alignment: Arrange the wires (Black, Red, Green, Yellow) according to your specific wiring standard (usually the center two pins for a single line).
Insertion: Slide the wires into the 6P4C RJ11 Extended Modular Plug. The clear housing allows you to verify that all four wires have reached the front of the connector.
Crimping: Use a standard 6P/RJ11 crimping tool. The extended body will not interfere with most professional-grade crimpers.

Versatile Applications in Modern Telecom

While many have shifted to mobile, the need for high-quality 6P4C RJ11 Extended Modular Plugs remains high in professional sectors:

Business PBX Systems: Connecting multi-line office phones where reliability is paramount.
Broadband Infrastructure: Termination for ADSL/VDSL filters and modems.
Industrial Control: Used in legacy data transmission and security alarm systems.
Retail POS: Connecting credit card terminals and receipt printers that still utilize RJ11/RJ14 interfaces.

By choosing our extended-reach solution, you are ensuring a frustration-free installation and a lifetime of reliable communication.
