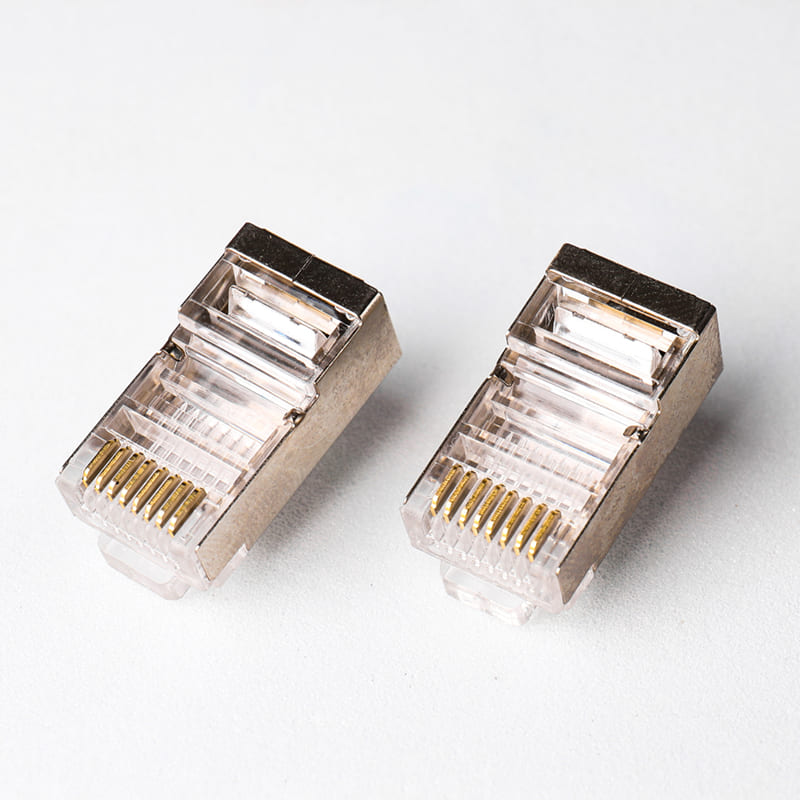

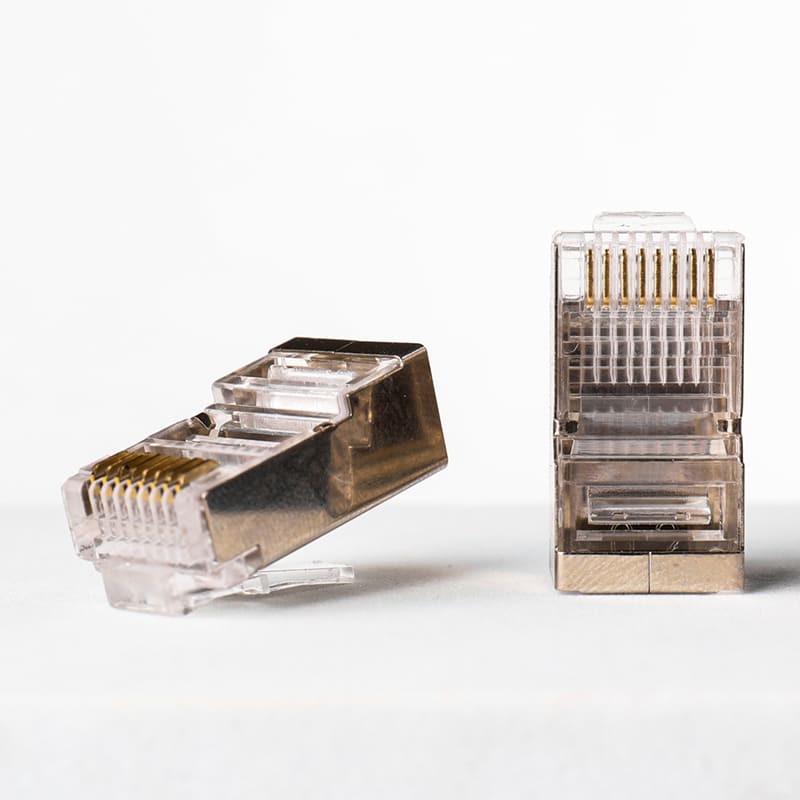

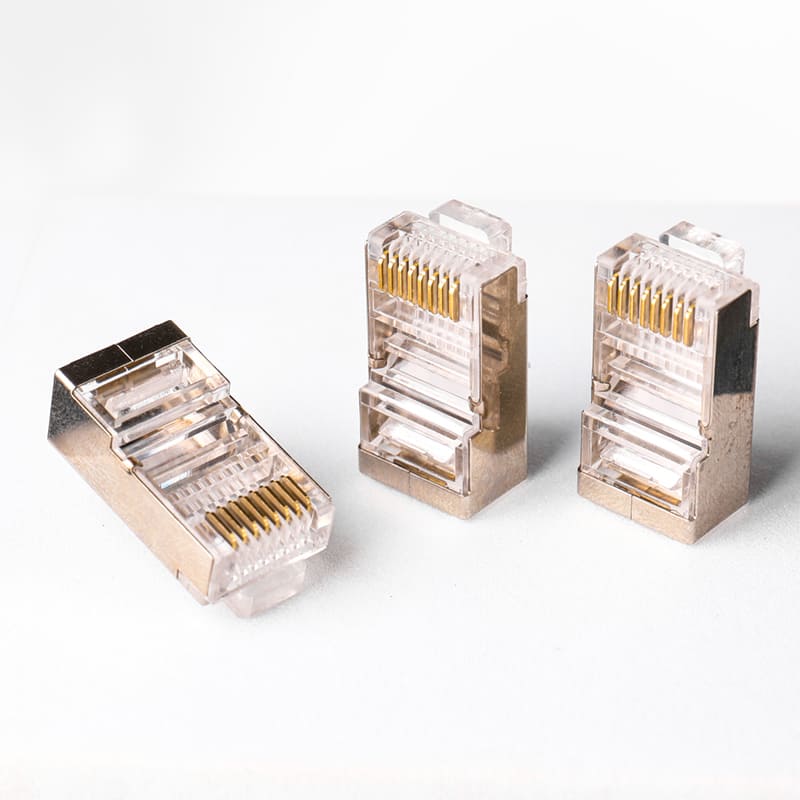

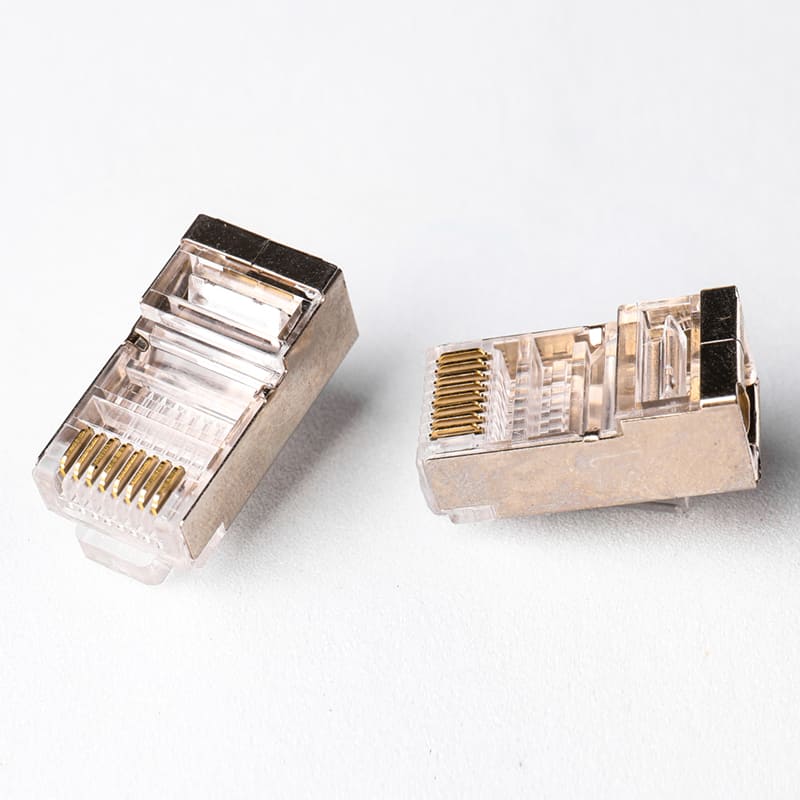

What is the Cat5e Shielded RJ45 Connector?
The Cat5e Shielded RJ45 Connector is a specialized modular plug designed to terminate Category 5e Shielded Twisted Pair (STP) or Foiled Twisted Pair (FTP) cables. Unlike standard unshielded plugs, this connector features a high-quality metal casing that acts as a ground for the cable’s shielding. This design is critical for protecting your data from high levels of electromagnetic interference (EMI) and radio frequency interference (RFI), which are common in industrial settings or crowded data centers.
Advanced Engineering for Stable Connections
In today’s high-speed digital world, even a small amount of signal noise can lead to packet loss and network downtime. Our Cat5e Shielded RJ45 Connector is engineered to eliminate these risks. The internal 8P8C layout ensures that wire pairs remain twisted as close to the termination point as possible, minimizing crosstalk (NEXT). When combined with a properly shielded cable and a grounded patch panel, these connectors provide a “fortress” for your network signals.
Technical Specifications
| Feature | Specification |
| Product Name | Cat5e Shielded RJ45 Connector |
| Shielding Type | STP / FTP (Shielded) |
| Interface | RJ45 8P8C |
| Gold Plating | 50μ” (Micron) Gold Plated |
| Shell Material | Copper Alloy with Nickel Plated |
| Insulation Material | Polycarbonate (UL 94V-2/V-0) |
| Contact Material | Phosphor Bronze |
| Wire Gauge | 24AWG – 26AWG |
| Data Transmission | 1000 Mbps (1 Gbps) |
| Bandwidth | 100 MHz |
| Durability | 750+ Mating Cycles |
Why Professional Installers Prefer Our Shielded Plugs
The quality of a Cat5e Shielded RJ45 Connector is defined by its contacts. We use premium phosphor bronze terminals that are treated with a thick 50-micron gold plating. This is the highest industrial standard available, ensuring that the connection points do not corrode over time, even in humid environments.
Furthermore, the three-prong pin design (compatible with both solid and stranded wires) pierces the insulation of the wires more effectively than two-prong alternatives. This creates a larger surface area for contact, resulting in lower resistance and more efficient power delivery for Power over Ethernet (PoE) applications.
Installation Best Practices for Cat5e Shielded RJ45 Connector
To achieve the best results with your Cat5e Shielded RJ45 Connector, follow these professional steps:
-
Cable Prep: Carefully strip the outer jacket to reveal the shielding and the drain wire.
-
Grounding: Fold the cable’s foil shielding back and wrap the drain wire around the jacket or ensure it makes direct contact with the connector’s metal shell.
-
Alignment: Organize the wires according to the T568B or T568A wiring standard.
-
Seating: Push the wires deep into the Cat5e Shielded RJ45 Connector until they hit the front wall.
-
Crimping: Use a shielded RJ45 crimping tool that can also crimp the external metal “tail” for a secure mechanical and electrical ground.
Wide Range of Applications
The Cat5e Shielded RJ45 Connector is not just for servers. It is an essential component for:
-
Industrial Automation: Protecting signals from heavy machinery noise.
-
Outdoor Installations: Used in conjunction with outdoor-rated shielded cables for IP cameras or wireless access points.
-
Audio/Video Production: Preventing interference in HDBaseT or high-end audio setups.
-
Medical Facilities: Ensuring sensitive medical equipment data remains uncorrupted by nearby electronic devices.
By integrating the Cat5e Shielded RJ45 Connector into your infrastructure, you are future-proofing your network against the increasing density of electronic devices in our environment.
