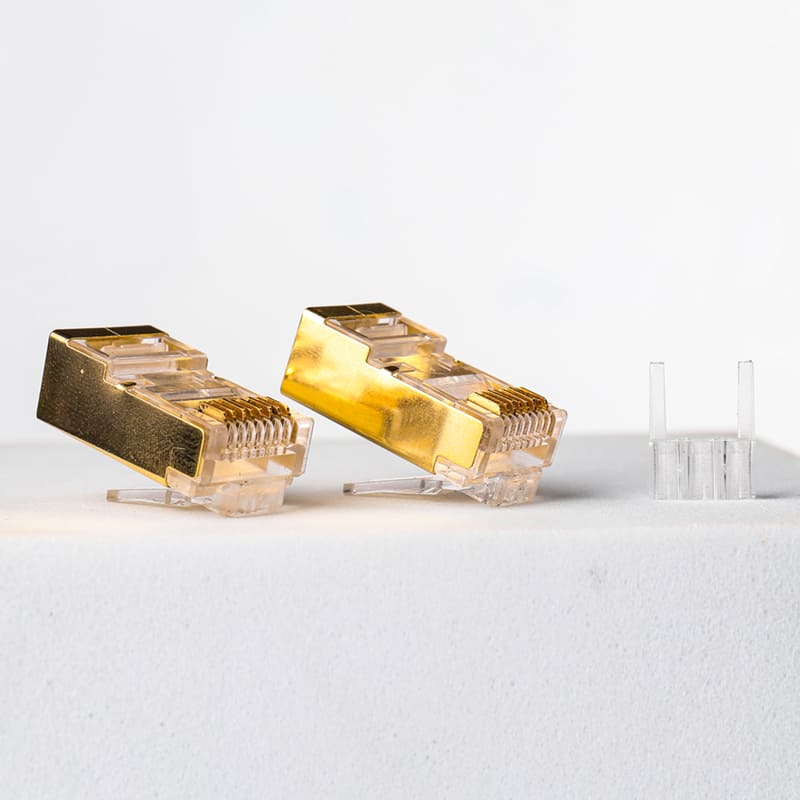

Cat5e Shielded Two-Piece RJ45 Connector showing plug body and load bar

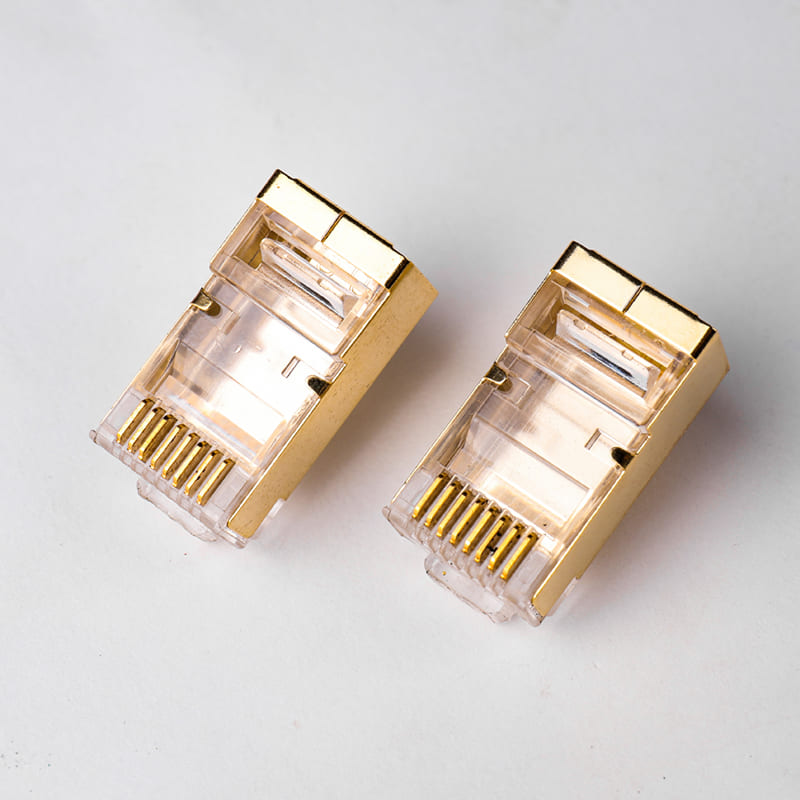

Fully Terminated Cat5e Shielded Two-Piece RJ45 Connector on STP Cable

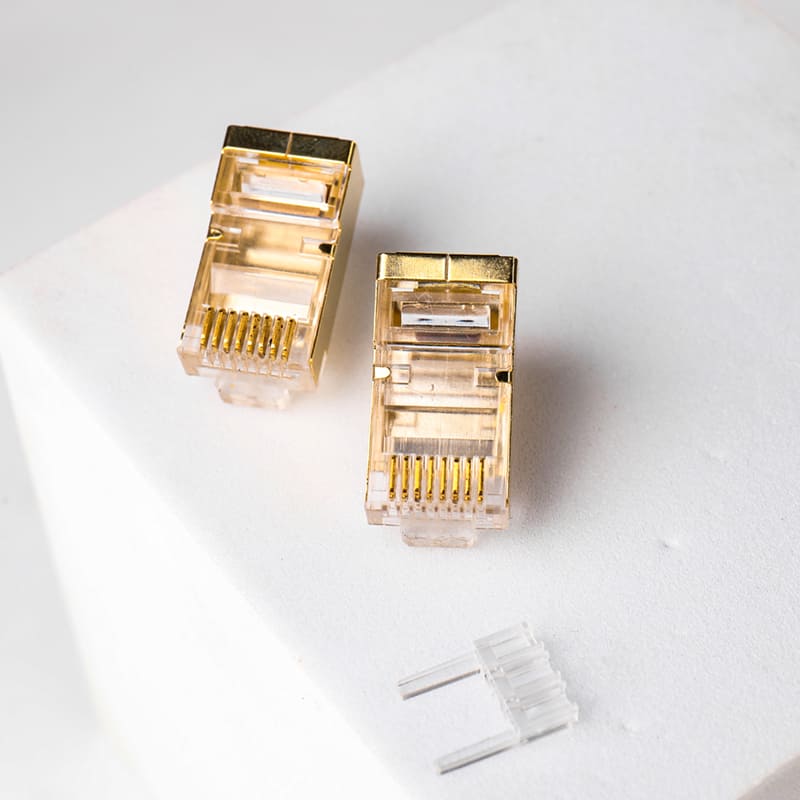

50 Micro Gold-Plated Contacts on Cat5e Two-Piece Shielded Connector

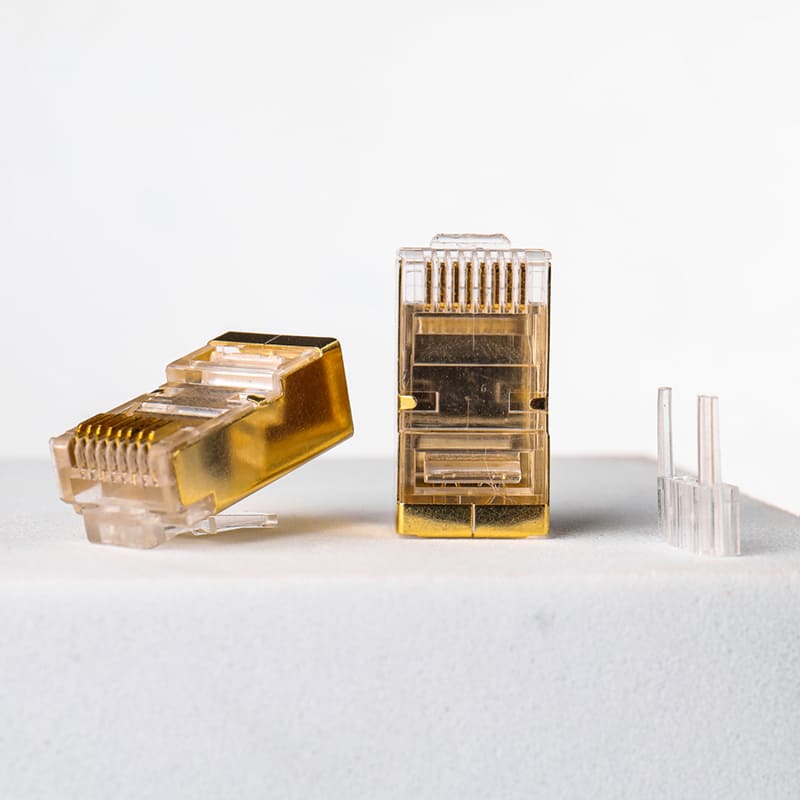

6-Up 2-Down Staggered Pin Design for Cat5e Shielded 8P8C Plug

Cat5e Shielded Two-Piece RJ45 Connector – 8P8C STP Modular Plug with 6-Up 2-Down Staggered Design and Load Bar

CAT5E RJ45 CONNECTOR SERIEE

Innovative Two-Piece System: Includes a dedicated load bar (liner) that ensures precise wire alignment and significantly simplifies the termination process.
Optimized 6-Up 2-Down Layout: The unique staggered internal geometry (6 pins up, 2 pins down) minimizes Near-End Crosstalk (NEXT) for superior signal clarity.
Comprehensive EMI Shielding: Encased in a high-quality nickel-plated copper shell to block electromagnetic interference and provide a reliable ground.
Industrial 50μ” Gold Plating: Features the highest grade of gold plating on phosphor bronze contacts for maximum conductivity and corrosion resistance.
Gigabit Ethernet Ready: Supports data transfer speeds up to 1000 Mbps and 100MHz bandwidth, meeting all Category 5e TIA/EIA standards.

Inquire Now

Description

Precision Engineering: Cat5e Shielded Two-Piece RJ45 Connector

The Cat5e Shielded Two-Piece RJ45 Connector represents a significant leap forward in modular plug technology. Designed for high-performance Shielded Twisted Pair (STP) cabling, this connector is specifically built to handle the rigorous demands of modern data environments. While standard one-piece connectors can be challenging to align, our two-piece system utilizes a precision-molded load bar to ensure every wire is perfectly seated before the plug is ever crimped.

Why the 6-Up 2-Down Staggered Design?

Crosstalk is the enemy of high-speed data. In traditional flat-row connectors, the proximity of the copper conductors can lead to signal bleeding. Our Cat5e Shielded Two-Piece RJ45 Connector features a specialized 6-Up 2-Down staggered arrangement. By staggering the conductors in two rows, we increase the physical distance between the wires inside the plug. This configuration drastically reduces Near-End Crosstalk (NEXT) and Return Loss, ensuring your network maintains stable Gigabit speeds even in high-density installations.

Technical Specifications (Mobile-Optimized)

Feature	Specification Details
Product Model	HX-C5E-2P-6U2D
Structure	Two-Piece (Plug Body + Load Bar)
Internal Layout	Staggered 6-Up / 2-Down
Category	Cat5e (Category 5e)
Shielding	STP / FTP (Nickel-Plated Copper)
Gold Plating	50μ” Gold Over Nickel
Wire Gauge Support	24AWG – 26AWG Solid or Stranded
Housing Material	UL 94V-2 High-Impact Polycarbonate
Transmission Rate	1000 Mbps (1 Gbps)
Bandwidth	100 MHz
Durability	≥ 750 Mating Cycles

The Advantage of the Two-Piece Load Bar System

One of the most common causes of network failure is poor termination. The Cat5e Shielded Two-Piece RJ45 Connector eliminates this variable through its included load bar.

Accuracy: The load bar allows you to verify the wiring sequence (T568A or T568B) clearly before insertion.
Performance: It keeps the twists of the cable pairs as close to the contacts as possible, which is essential for meeting Cat5e certification requirements.
Speed: Installers can work faster with fewer errors, reducing labor costs and material waste.

Shielding for Extreme Environments

In industrial settings or data centers filled with power cables, electromagnetic interference (EMI) is a major concern. The Cat5e Shielded Two-Piece RJ45 Connector is wrapped in a robust, nickel-plated copper alloy shell. This shell acts as a Faraday cage, shielding the internal signals from external noise and providing a secure grounding path for the cable’s drain wire. When paired with shielded Cat5e cables, it creates a fully protected data link.

Installation Best Practices

To maximize the performance of your Cat5e Shielded Two-Piece RJ45 Connector, follow these steps:

Prep: Strip the outer jacket and fold back the foil shield and drain wire.
Load: Slide the wires into the Load Bar according to the 6-up 2-down staggered pattern.
Trim: Cut the excess wire flush against the front of the load bar.
Insert: Push the load bar assembly into the Cat5e Shielded Two-Piece RJ45 Connector until it is firmly seated.
Crimp: Use a professional-grade shielded RJ45 crimper to secure the connection and the external ground tail.

Applications

This connector is ideal for:

Government & Military Facilities: Where data security and shielding are paramount.
Industrial Automation: Connecting PLCs and sensors in high-EMI environments.
High-End Residential: For homeowners who demand the most stable 1G networking for streaming and gaming.

By choosing the Cat5e Shielded Two-Piece RJ45 Connector, you are investing in a product that combines ease of use with industrial-strength reliability.
