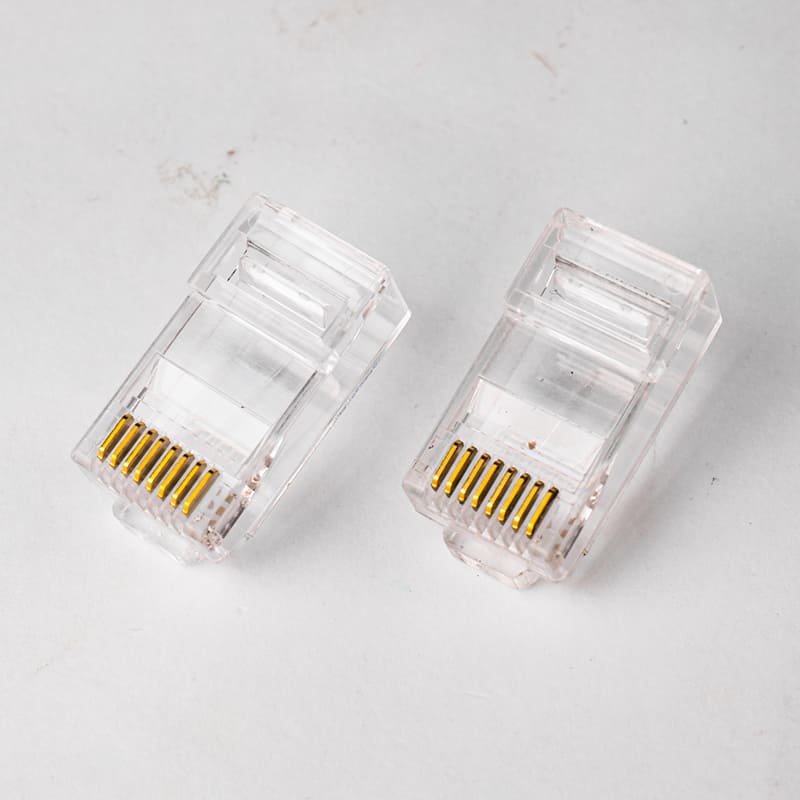

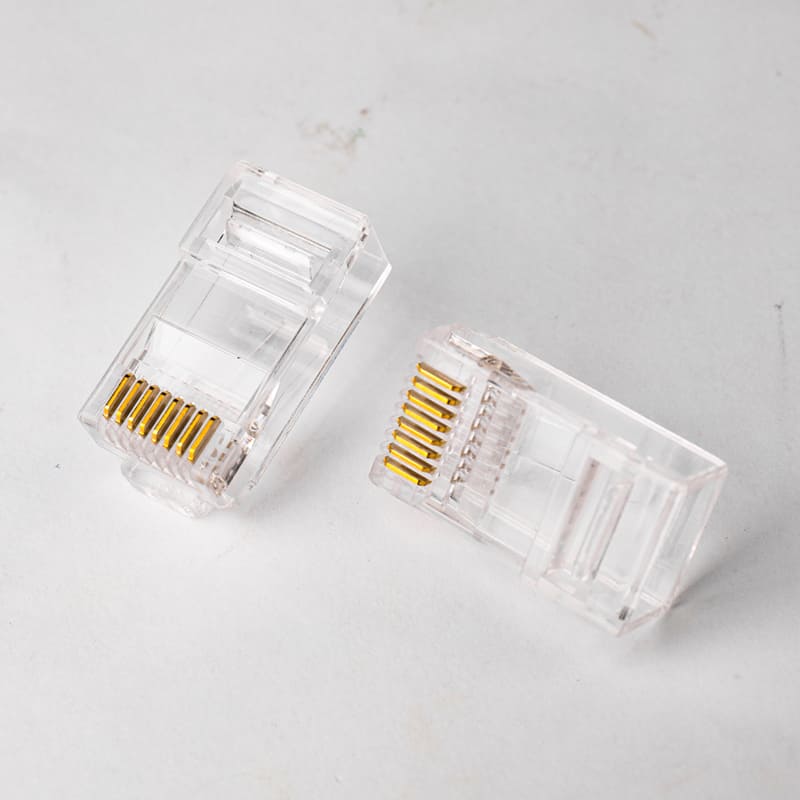

Maximize Signal Integrity with the Cat6 Two-Piece Unshielded Modular Plug
In modern high-speed networking, Cat6 cabling has become the standard for office and home environments. However, the increased wire diameter of Cat6 cables often makes standard one-piece connectors difficult to install. Our Cat6 two-piece unshielded modular plug is specifically designed to solve these challenges. By utilizing a specialized two-piece architecture and a staggered internal layout, this connector ensures that your high-speed network performs at its absolute peak.
The Innovation of the Two-Piece and Staggered Design

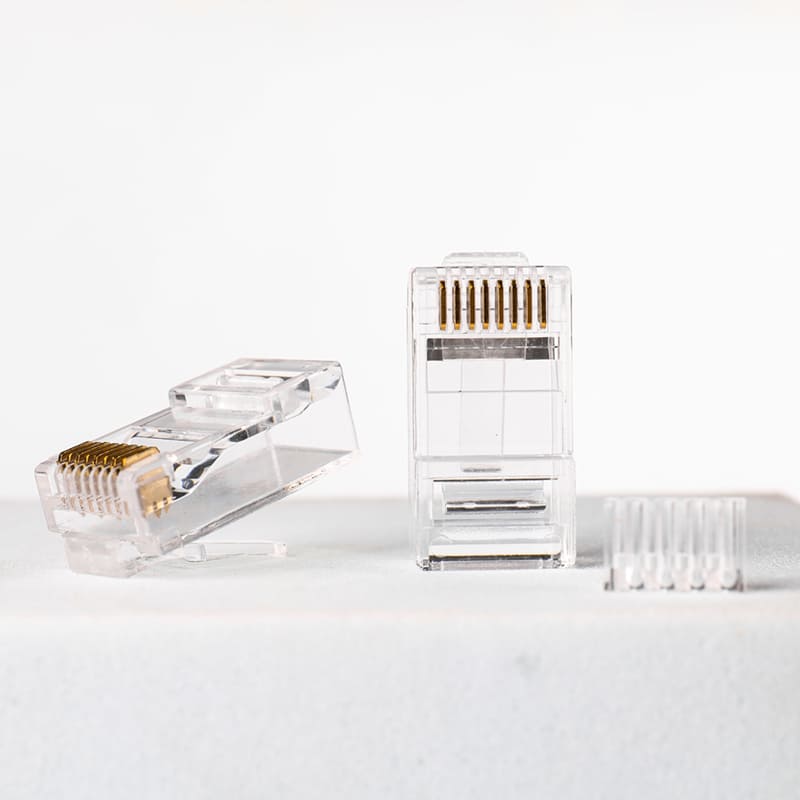

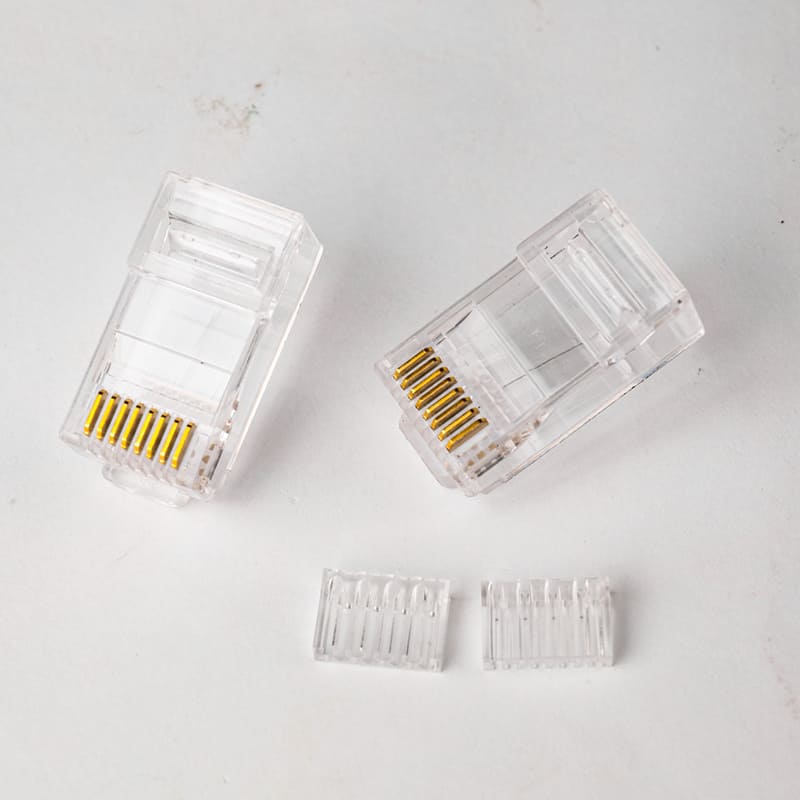

What makes the Cat6 two-piece unshielded modular plug stand out? The secret lies in its precision-engineered load bar. Instead of trying to force eight thick wires into a single row, the Cat6 two-piece unshielded modular plug uses a “staggered” or “4-up 4-down” arrangement.
-
Ease of Assembly: The load bar allows the technician to arrange the wires outside the main body. This reduces the risk of wire misplacement and significantly speeds up the termination process.
-
Crosstalk Reduction: By staggering the wires into two rows, the distance between individual wire cores is increased at the contact point. This physical separation is critical for reducing Near-End Crosstalk (NEXT), ensuring that your Cat6 two-piece unshielded modular plug passes stringent Fluke certification tests.
Technical Specifications (Mobile-Optimized Table)
| Property | Details |
| Model Category | Cat6 Two-Piece Unshielded Modular Plug |
| Interface | 8P8C (RJ45) UTP |
| Component Mix | Main Body + Load Bar (Insert) |
| Wire Arrangement | Staggered Double-Row (4-up/4-down) |
| Contact Plating | Genuine 50μ” Gold over Nickel |
| Housing Material | High-Clarity Polycarbonate (UL 94V-2/V-0) |
| Cable Support | 23 – 24 AWG Solid & Stranded |
| Mating Cycles | Guaranteed > 1,000 Cycles |
| Compliance | RoHS, REACH, TIA/EIA-568-B/C |
Engineered for High-Density Networking
Reliability is non-negotiable in data center and server room environments. Every Cat6 two-piece unshielded modular plug we produce features 3-prong contacts made from high-purity phosphor bronze. Unlike standard 2-prong pins, our 3-prong design provides a more secure “bite” into the wire core, whether you are using solid industrial cabling or flexible patch cords.
Furthermore, we utilize a true 50 micro-inch gold layer on the contacts. This thick gold plating ensures the Cat6 two-piece unshielded modular plug maintains a low-resistance connection for decades, resisting the corrosive effects of humidity and oxidation. For more in-depth technical guides on Cat6 standards, you can refer to the TIA official documentation .
Superior Latch Resilience and Quality Control
A common failure point in modular connectors is the locking latch. Our Cat6 two-piece unshielded modular plug is made from premium PC resin with exceptional toughness. The latch can be bent 180 degrees multiple times without snapping, ensuring a secure lock in the Ethernet port even under heavy cable stress.
As a leading manufacturer, we treat every Cat6 two-piece unshielded modular plug as a precision component. Each batch undergoes rigorous testing, including dimension verification, insertion life cycles, and gold-plating thickness analysis. We also invite you to explore our full range of Cat6 connectors to find the perfect solution for your high-performance network project.
