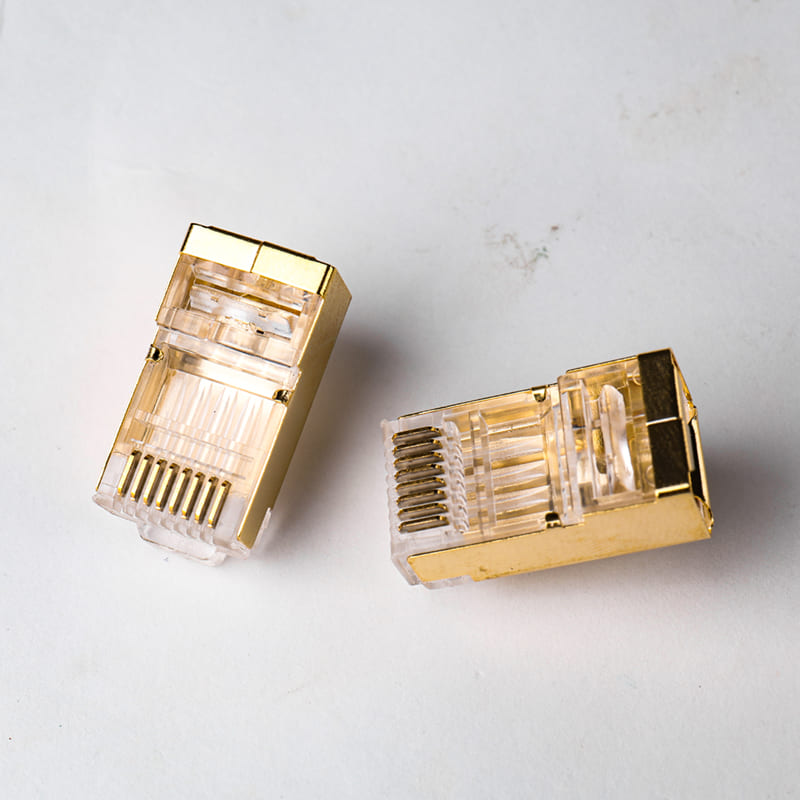

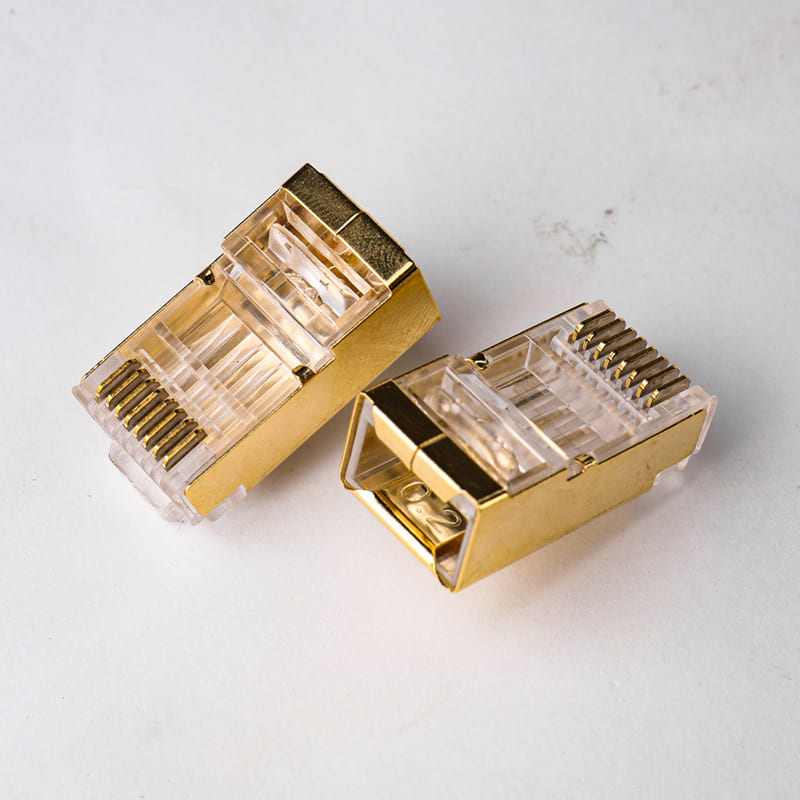

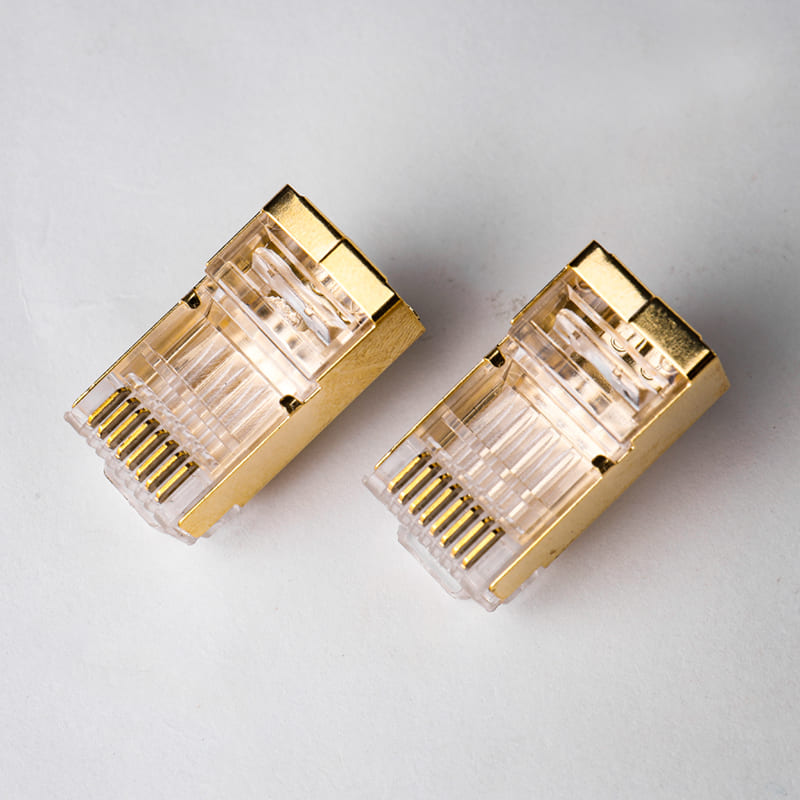

The Ultimate Solution for Large-Diameter Cabling: Cat6 1.35mm Gold-Plated Shielded Modular Plug
In the professional networking industry, standard connectors often fall short when dealing with high-performance, thick-insulated Ethernet cables. As network speeds push towards 10Gbps, Cat6 and Cat6A cables are becoming thicker, using 22 AWG or 23 AWG solid copper cores. Our Cat6 1.35mm gold-plated shielded modular plug is precision-engineered to address this specific challenge. With its massive 1.35mm internal wire holes, this connector provides the necessary clearance for thick insulation, ensuring a smooth, damage-free installation every time.
Why Pure Copper Gold-Plated Shielding Matters?
Not all shielded plugs are created equal. While most use nickel-plated steel, our Cat6 1.35mm gold-plated shielded modular plug features a pure copper shell finished with a premium gold layer.
-
Maximum Conductivity: Copper is a superior conductor, providing a more stable and effective ground path for EMI and RFI noise.
-
Unrivaled Corrosion Resistance: The gold plating on the shell ensures that even in coastal areas or damp industrial server rooms, your Cat6 1.35mm gold-plated shielded modular plug will never rust or degrade.
-
Aesthetic and Professional Finish: The brilliant gold finish signifies a high-end installation, often required in luxury data centers and professional broadcast studios.
Technical Specifications (Mobile-Optimized Table)
| Property | Details |
| Product Model | Cat6 1.35mm Gold-Plated Shielded Modular Plug |
| Interface Type | 8P8C (RJ45) STP |
| Wire Hole Diameter | 1.35 mm (For 22-23 AWG Cables) |
| Shielding Material | Pure Copper with Gold Plating |
| Contact Plating | Genuine 50μ” Gold over Nickel |
| Housing Material | UL-Listed High-Impact Polycarbonate |
| Performance | Cat6 / Cat6A (Up to 10Gbps) |
| Operating Temp | -40°C to +85°C |
| Compliance | RoHS, REACH, ANSI/TIA-568-D |
Optimized for High-Density and High-Bandwidth Networks
The Cat6 1.35mm gold-plated shielded modular plug is more than just a connector; it is a critical component in maintaining signal integrity. By utilizing a 3-prong pin design, the connector creates multiple contact points with the wire core. This is vital for thick 22 AWG solid conductors, where a standard 2-prong pin might slip or fail to penetrate the insulation properly.
When terminating thick cables, maintaining the proper twist ratio as close to the contacts as possible is the key to passing Fluke certification. The spacious internal design of our Cat6 1.35mm gold-plated shielded modular plug allows the wire pairs to be seated deeply and securely, minimizing crosstalk and ensuring your network meets the highest performance standards. For detailed cabling guidelines, you can consult the ISO/IEC 11801 industrial standards
Application Scenarios for Industrial Excellence
This Cat6 1.35mm gold-plated shielded modular plug is the preferred standard for the most demanding applications:
-
Data Center Infrastructure: Backbone links that require 10G speeds and absolute reliability.
-
Professional AV & Broadcasting: Shielding 4K/8K video transmission from interference in high-power environments.
-
Industrial Automation: Terminating thick, shielded industrial Ethernet cables used in robotic arms and control systems.
-
Government & Military Networks: Where the highest level of shielding and durability is mandatory.
Partner with a Specialized Manufacturer
Every Cat6 1.35mm gold-plated shielded modular plug we produce is subjected to a rigorous quality control process, including salt spray testing for the gold-plated shell and high-voltage insulation tests. We invite you to explore our full range of high-gold-plating modular connectors to find the perfect fit for your project. By choosing our Cat6 1.35mm gold-plated shielded modular plug, you are investing in a future-proof connection that combines ultimate luxury with uncompromising industrial performance.
