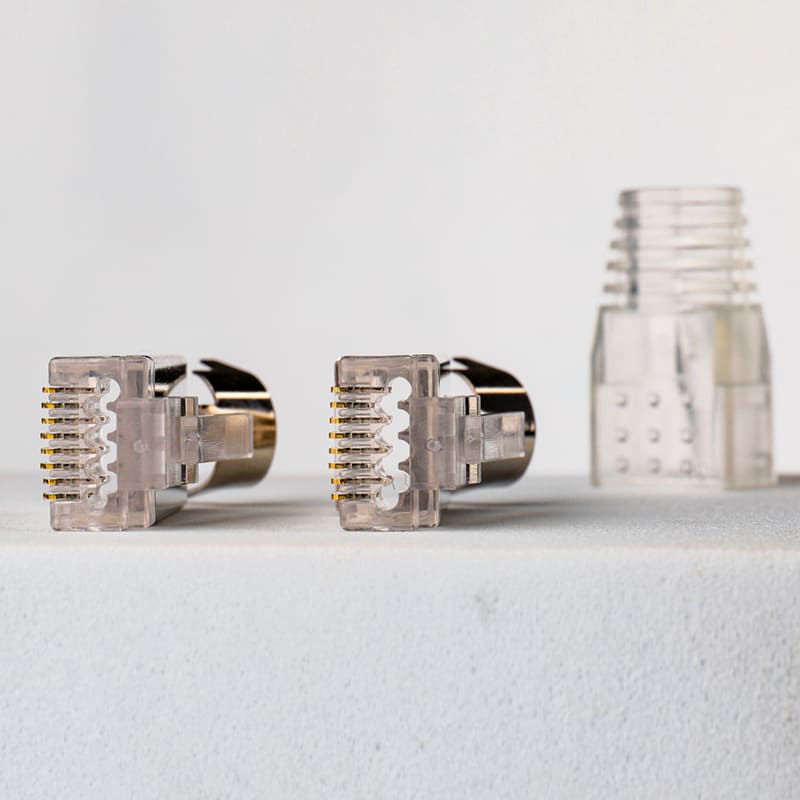

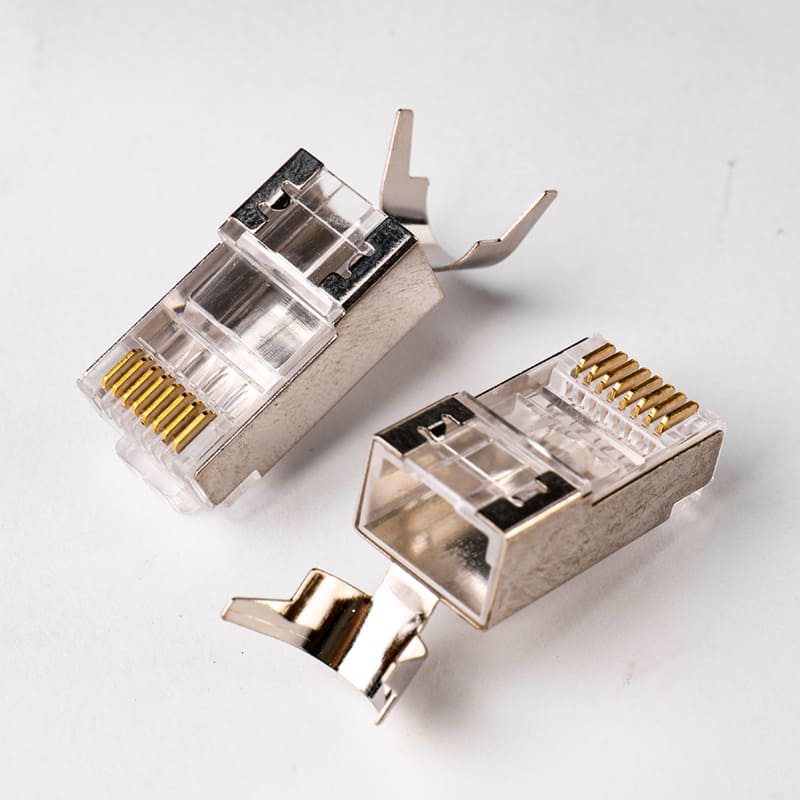

The Pinnacle of Networking Termination: Cat7 Shielded Pass-Through RJ45
Terminating Category 7 S/FTP cables is notoriously difficult due to their thick insulation and individual pair shielding. Our Cat7 Shielded Pass-Through RJ45 Connector is designed to solve this professional challenge. By merging two-piece construction with pass-through technology, we provide a connector that not only fits thick 22AWG wires but also allows you to verify the color-coded sequence (T568A/B) before crimping. This “zero-waste” approach saves time and significantly reduces material costs on high-end infrastructure projects.
Advanced Gold-Plated Copper Shielding Technology
In environments saturated with electromagnetic interference—such as industrial plants or dense data centers—shielding is non-negotiable. While most competitors use nickel-plated steel, our connector features a Gold-Plated Copper Shell. Copper is a vastly superior electrical conductor for grounding, and the gold plating ensures that the shield will never oxidize or corrode. This creates an impenetrable “Faraday Cage” around the connection point, ensuring your 10Gbps data stream remains pure and uninterrupted by external noise.
Technical Specifications (Mobile-Optimized Table)
| Feature | Specification Details |
| Product Model | HX-C7-PT-2P-GPC |
| Category Rating | Cat7 (Category 7) / Cat6A Compatible |
| Shielding Type | STP / S-FTP (Full Metal Shielded) |
| Shell Material | Pure Copper with Deep Gold Plating |
| Internal Design | Pass-Through with Staggered Two-Piece |
| Gold Plating | Industrial 50μ” Gold over Nickel |
| Wire Gauge Support | 22AWG – 23AWG Solid or Stranded |
| Max Data Rate | 10 Gbps (10,000 Mbps) |
| Bandwidth Rate | Up to 600 MHz |
| Mating Cycles | Tested for ≥ 750 Insertions |
Why the Two-Piece Pass-Through Combo is Better
The inclusion of a Load Bar (Liner) is critical for Cat7 cables. It holds the wires in a staggered 4-up/4-down pattern before they enter the plug body, maintaining the cable’s internal twists as close to the contacts as possible. When paired with the Pass-Through feature, the wires slide through the load bar and out the front of the plug. This allows the technician to pull the cable jacket deep into the plug for superior strain relief and ensures that every single wire is fully seated against the pins before the final crimp is made.
Engineered for 10GBASE-T and PoE++
Modern networks require more than just speed; they require power. Our Cat7 Shielded Pass-Through RJ45 Connector is fully compatible with Power over Ethernet (PoE, PoE+, and PoE++ 802.3bt). The combination of 50μ” thick gold-plated phosphor bronze pins and the high-conductivity copper shell ensures minimal contact resistance. This prevents localized heat buildup, protecting your high-end networking hardware—such as 10G switches, Wi-Fi 7 access points, and advanced medical imaging equipment.
Professional Installation Tip
To achieve the best results, use a high-quality shielded pass-through crimping tool. Ensure that the cable’s drain wire is securely wrapped and makes firm contact with the gold-plated copper shell. This ensures a continuous ground path from the cable shield to the equipment port, which is mandatory for passing high-level Fluke tests.
