Cat7 Shielded RJ45 Connector 1.5mm – Premium Full-Wrap Gold-Plated Copper Shell Two-Piece Modular Plug for 22AWG STP Cables

Cat7 Shielded RJ45 Connector 1.5mm: The Ultimate Solution for High-Performance 10G Networks

The Cat7 Shielded RJ45 Connector 1.5mm is the definitive industrial choice for modern high-bandwidth infrastructure. As data centers and enterprise networks upgrade to 10Gbps and beyond, the cables used (such as 22AWG S/FTP) have become significantly thicker and more difficult to terminate. Standard RJ45 plugs simply cannot accommodate the insulation of these premium cables. Our Cat7 Shielded RJ45 Connector 1.5mm bridges this gap, offering the necessary 1.5mm internal clearance while providing superior shielding performance.

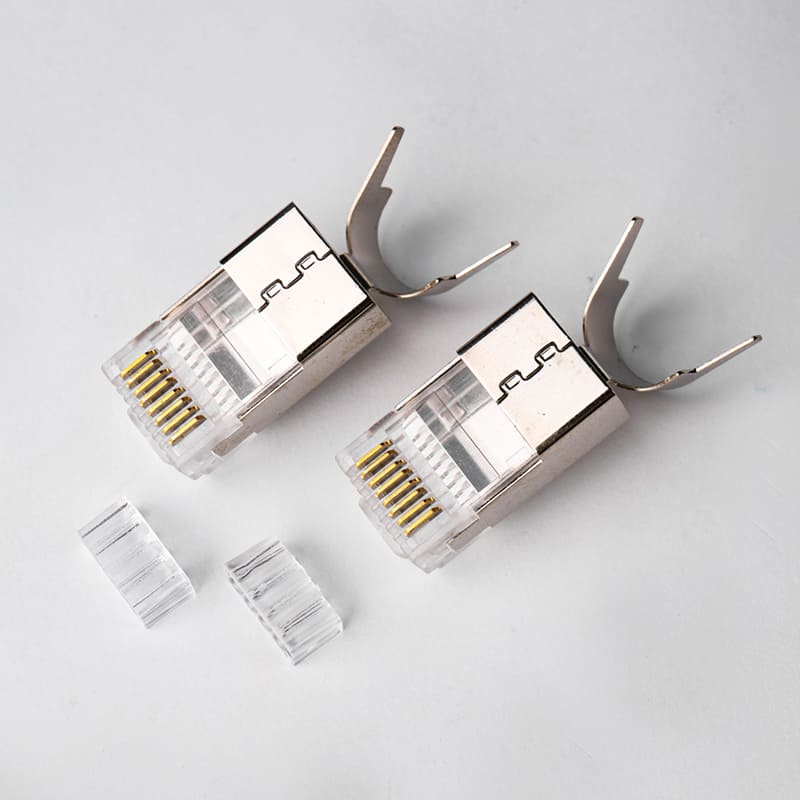

Innovative Full-Wrap Gold-Plated Copper Shielding

Interference is the enemy of high-speed data. The Cat7 Shielded RJ45 Connector 1.5mm stands out with its unique Full-Wrap (Full-Cover) shield. Unlike standard connectors where the metal shell only covers part of the plug, our “Full-Wrap” design ensures the copper shell completely encases the internal components. Made of high-purity copper and fully gold-plated, this shell provides unmatched grounding and immunity to electromagnetic interference (EMI). The gold plating prevents oxidation, ensuring that your network’s shielding remains effective even in harsh or humid environments.

Technical Specifications (Mobile-Optimized Table)

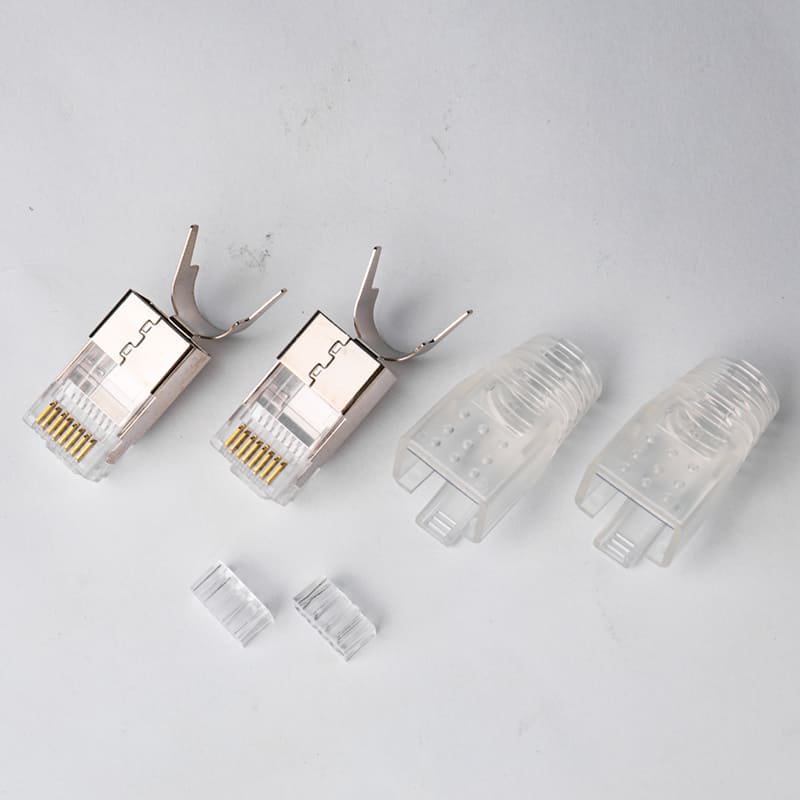

The Precision of Two-Piece Load Bar Technology

Termination accuracy is critical for Category 7 certification. The Cat7 Shielded RJ45 Connector 1.5mm utilizes a Two-Piece system featuring a specialized Load Bar (Liner). This bar allows the technician to pre-arrange and lock the wires into the correct T568A or T568B sequence outside the main plug body. Once the wires are trimmed flush, the assembly slides into the housing. This ensures that the twists of the internal wire pairs are maintained right up to the contact point, drastically reducing Near-End Crosstalk (NEXT) and helping the cable pass rigorous Fluke tests.

Designed for PoE++ and Matching Boots

Modern networks often carry massive power alongside data. Our Cat7 Shielded RJ45 Connector 1.5mm is fully compatible with Power over Ethernet (PoE, PoE+, and PoE++ 802.3bt). The low-resistance gold-plated copper shell and 50μ” pins prevent heat buildup at the connection point. Additionally, this connector is designed to be paired with specialized large-diameter boots. These boots protect the critical locking tab from snagging and provide a clean, professional finish for your high-end cabling projects.

Professional Installation Workflow

To ensure peak performance with the Cat7 Shielded RJ45 Connector 1.5mm, we recommend the following:

1. Preparation: Strip the outer jacket and fold back the shielding foil of your 22AWG STP cable.

2. Alignment: Slide the wires through the staggered load bar.

3. Trimming: Use a flush cutter to trim the excess wire.

4. Insertion: Push the assembly into the Cat7 Shielded RJ45 Connector 1.5mm until the load bar is fully seated.

5. Crimping: Use a high-quality shielded crimping tool to secure the contacts and the metal grounding tail to the cable shield.

Applications and Future-Proofing

From enterprise-level data centers to high-fidelity 8K audio-visual systems, the Cat7 Shielded RJ45 Connector 1.5mm provides the reliability needed for the next generation of networking. It is the preferred choice for 10GBASE-T applications where data integrity cannot be compromised. By investing in our full-wrap copper shielding solution, you are future-proofing your network with a component that balances installer-friendly features with heavy-duty industrial performance.
