Cat7 Shielded RJ45 Connector 1.5mm – Premium Colorful Full-Wrap Gold-Plated Copper Shell Two-Piece Modular Plug for 22AWG Cables

Cat7 Shielded RJ45 Connector 1.5mm: The Colorful Evolution in 10G Networking

The Cat7 Shielded RJ45 Connector 1.5mm is the definitive industrial choice for modern high-bandwidth infrastructure that requires both performance and organization. As enterprise networks upgrade to 10Gbps, the Category 7 S/FTP cables (often 22AWG) have become significantly thicker and harder to terminate. Standard plugs simply cannot fit these massive cables. Our Cat7 Shielded RJ45 Connector 1.5mm bridges this gap, providing a massive 1.5mm internal clearance combined with a multicolor housing system for expert-level cable management.

Visual Organization Meets High-Performance Shielding

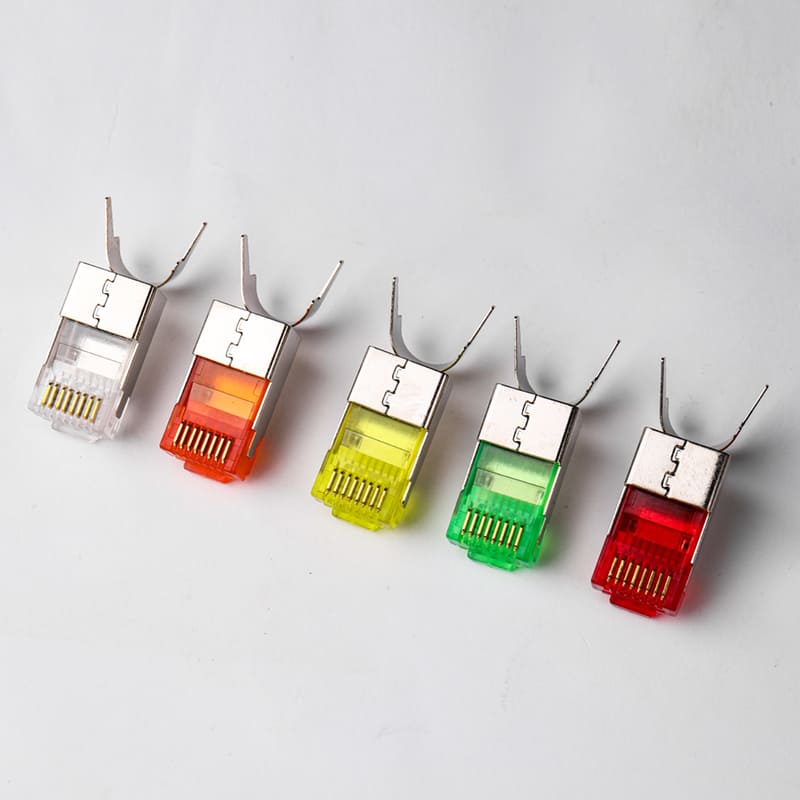

In complex data centers and server rooms, identifying specific lines can be a nightmare. The Cat7 Shielded RJ45 Connector 1.5mm solves this with its vibrant, multi-color options. You can now color-code your network by department, priority, or device type without sacrificing shielding integrity. The “Full-Wrap” gold-plated copper shell encases the 8P8C internal components completely, providing unmatched grounding and immunity to electromagnetic interference (EMI). The deep gold finish on the copper shell is a mark of high-end anti-corrosion technology, ensuring your 10Gbps connection remains stable even in harsh environments.

Technical Specifications (Mobile-Optimized Table)

The Precision of Two-Piece Load Bar Engineering

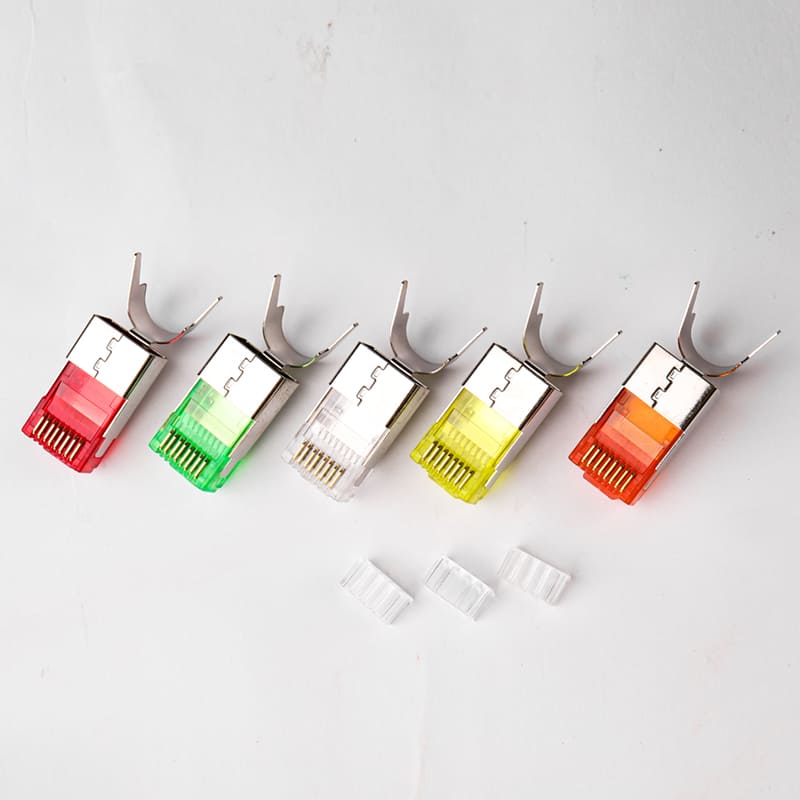

Achieving 10GBASE-T performance requires keeping the twisted pairs as close to the contacts as possible. The Cat7 Shielded RJ45 Connector 1.5mm utilizes a specialized Two-Piece system featuring a precision Load Bar (Liner). This bar allows the installer to pre-arrange and lock the wires into the correct T568A or T568B sequence outside the connector body. Once the wires are trimmed flush against the bar, the entire assembly slides into the housing. This ensures that the twists are maintained to the absolute limit, helping the cable pass rigorous Fluke® tests with ease.

Enhanced Durability with Matching Boots

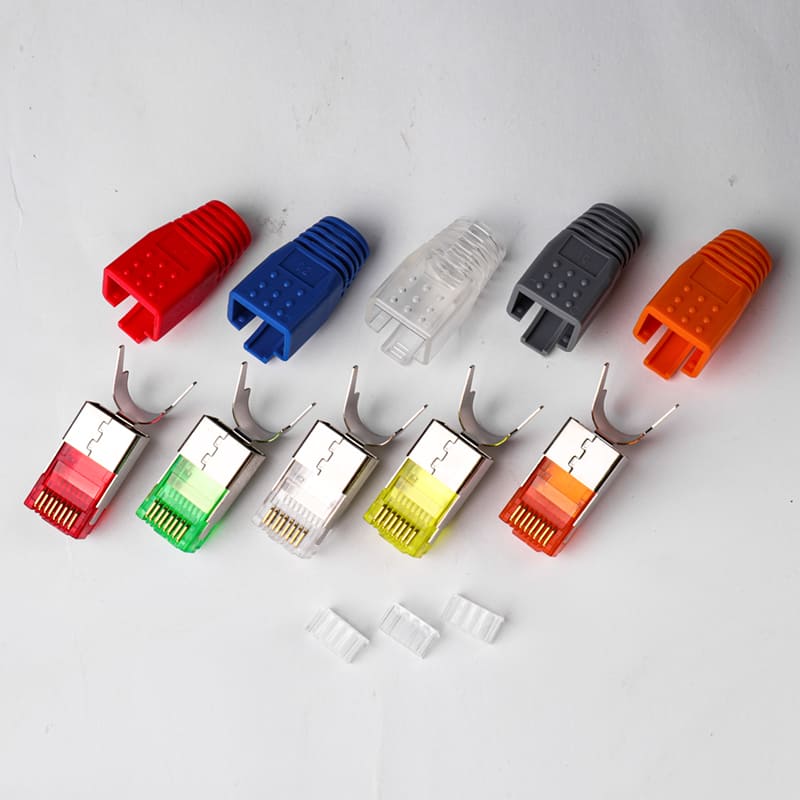

To provide a complete professional solution, the Cat7 Shielded RJ45 Connector 1.5mm is designed to work seamlessly with specialized large-diameter strain relief boots. These boots protect the critical locking tab from snagging during cable pulls. Especially when used with thick 22AWG cables, the matching boot provides a firm mechanical transition, preventing internal wire fatigue and ensuring the full-wrap shield maintains a consistent ground path even under physical stress.

Professional Installation Workflow

For the highest network reliability with the Cat7 Shielded RJ45 Connector 1.5mm, follow these steps:

1. Strip: Remove the outer jacket of your 22AWG STP cable and fold back the shield.

2. Color Match: Select the appropriate color for your Cat7 Shielded RJ45 Connector 1.5mm.

3. Load: Slide the wires through the load bar according to the wiring standard.

4. Trim: Cut the wires flush against the front of the load bar.

5. Insert: Push the assembly deep into the body until it clicks.

6. Crimp: Use a shielded crimper to lock the gold shell to the drain wire.

Future-Proofing Your High-Speed Infrastructure

Whether you are wiring an enterprise data center, a professional recording studio, or a high-fidelity 8K home theater, the Cat7 Shielded RJ45 Connector 1.5mm is the ultimate termination tool. Its ability to handle large wire gauges and provide color-coded organization makes it the preferred choice for 10Gbps applications where both data integrity and management are non-negotiable. By choosing our colorful full-wrap gold copper solution, you are future-proofing your network with industrial-strength performance and professional-grade aesthetics.
