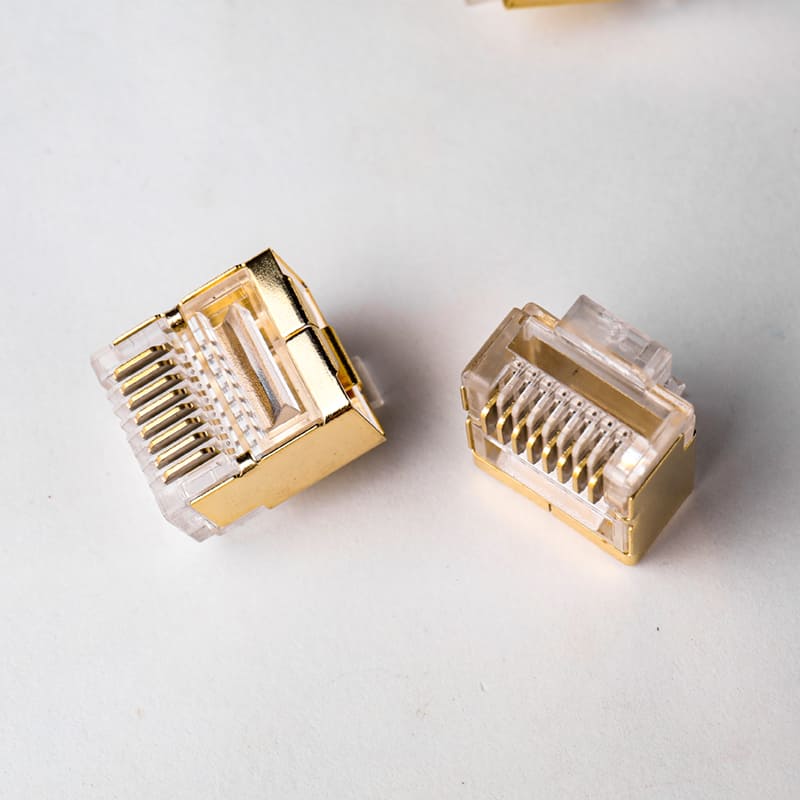

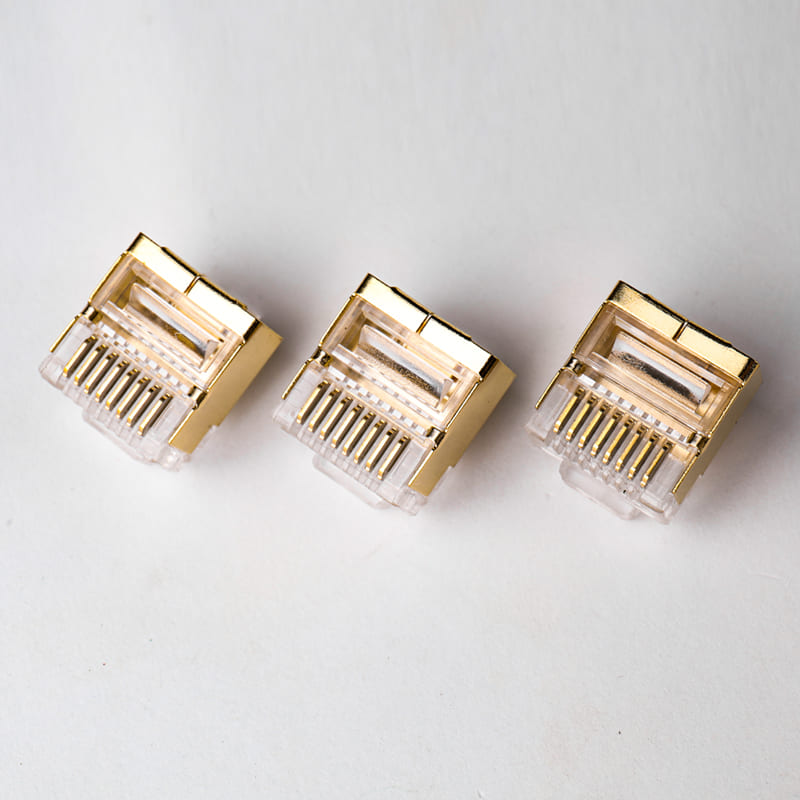

The Ultimate Connection: Cat5e Two-Piece Shielded Short Body Modular Plug
In the modern landscape of high-speed industrial data, where interference is constant and space is limited, the quality of your termination is paramount. Our Cat5e two-piece shielded short body modular plug is engineered to provide a professional-grade solution that addresses the three most common networking challenges: installation precision, EMI noise, and cramped quarters. This hybrid design represents the pinnacle of Cat5e connectivity technology.

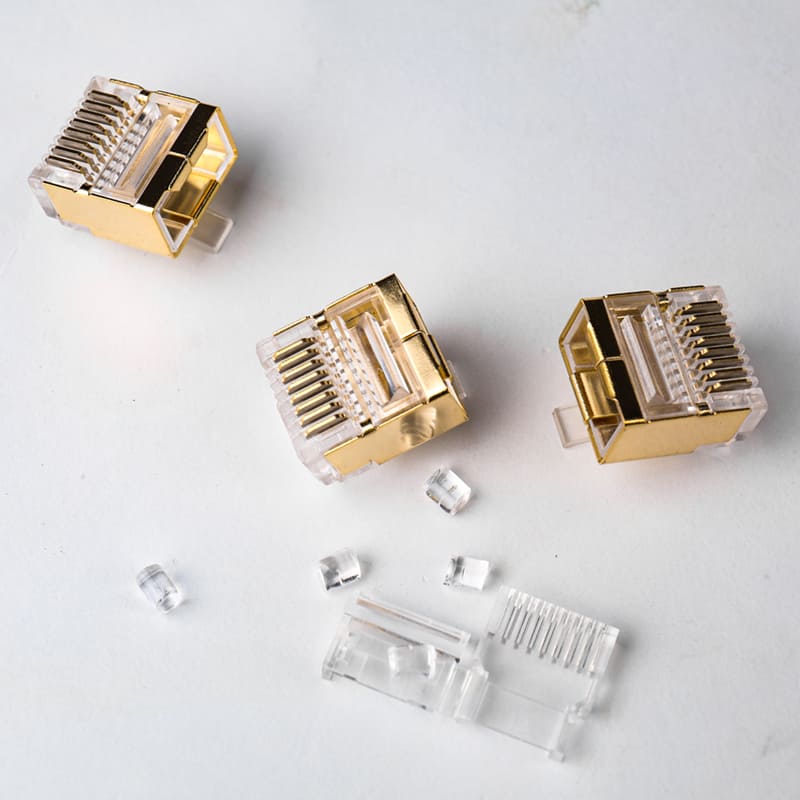

Advanced Two-Piece Architecture for Signal Integrity
Standard one-piece connectors often suffer from inconsistent wire seating, which can lead to performance degradation. The Cat5e two-piece shielded short body modular plug utilizes a high-precision load bar (insert). This separate component allows technicians to arrange and trim the twisted pairs outside of the main housing. By maintaining the wire twists as close to the contacts as possible, this Cat5e two-piece shielded short body modular plug drastically reduces crosstalk and ensures your network meets the strictest Cat5e certification standards.
Technical Specifications (Mobile-Ready Table)
| Feature | Specification |
| Product Model | Cat5e Two-Piece Shielded Short Body Modular Plug |
| Connector Type | 8P8C (RJ45) STP |
| Structure | 2-Piece (Main Body + Insert/Load Bar) |
| Shielding | Full Nickel-Plated Brass Shell |
| Contact Plating | 50μ” Gold Plating over Nickel |
| Body Length | Short Body Design (Space Saving) |
| Housing Material | UL-Listed Polycarbonate (PC) |
| Operating Temp | -40°C to +85°C |
Shielded Protection in a Compact Form Factor
Industrial environments are often filled with electrical noise from high-voltage machinery and wireless signals. The Cat5e two-piece shielded short body modular plug features a robust, wrap-around metal shielding shell. This ensures a consistent ground path, protecting your data from EMI (Electromagnetic Interference) and RFI.
Despite its heavy-duty shielding, we have managed to maintain a “Short Body” profile. This makes the Cat5e two-piece shielded short body modular plug ideal for use behind slim wall plates, in compact IoT devices, or in over-crowded server cabinets where every millimeter counts. For more information on interference standards, you may consult the IEEE 802.3 industry standards .
Unrivaled Durability with 50μ” Gold Plating
The “heart” of any modular connector is its contacts. Many brands use thin “flash” gold plating that wears off after a few uses. Our Cat5e two-piece shielded short body modular plug features 3-prong phosphor bronze contacts with a genuine 50 micro-inch gold layer. This ensures that the Cat5e two-piece shielded short body modular plug remains resistant to oxidation and maintains low contact resistance over its entire lifespan (guaranteed for >1,000 insertion cycles).
Wide Range of Professional Applications
The Cat5e two-piece shielded short body modular plug is the preferred choice for several high-stakes industries:
-
Industrial Automation: Shielding protects data from heavy machinery interference.
-
Data Centers: Short body allows for cleaner cable management in high-density racks.
-
Medical Equipment: Two-piece precision ensures zero-failure data links for sensitive diagnostic tools.
-
Custom Patch Cords: Perfect for manufacturers creating high-end, custom-length shielded Ethernet cables.
As a manufacturer committed to excellence, we subject every Cat5e two-piece shielded short body modular plug to rigorous salt spray and tension testing. We invite you to check our full range of STP modular plugs to find the perfect match for your networking project.
