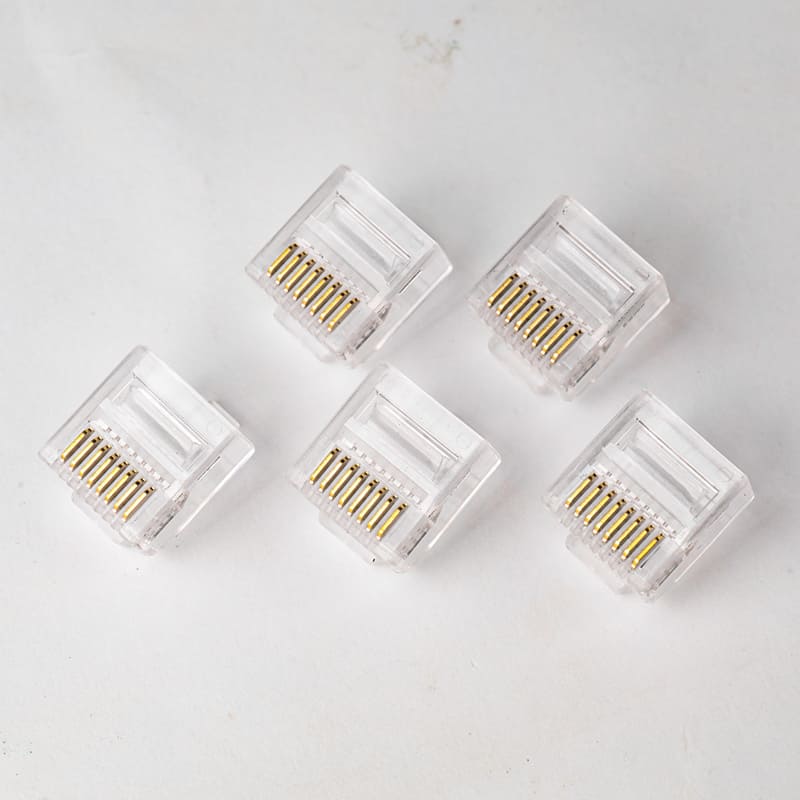

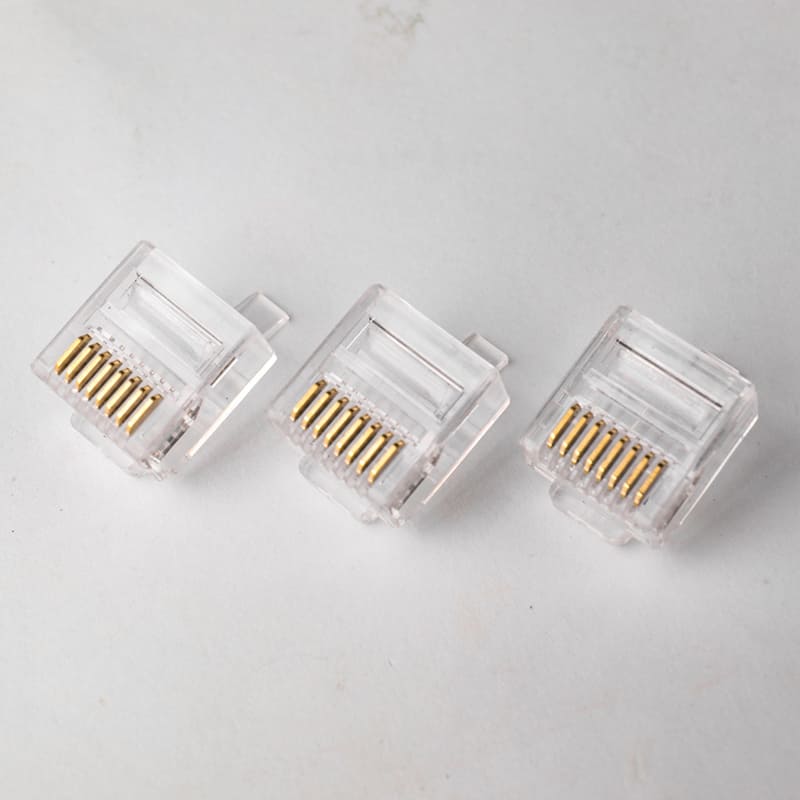

Revolutionize Your Assembly with the Cat5e Two-Piece Short Body Modular Plug
In the world of high-speed data transmission, the quality of your termination can make or break network performance. Our Cat5e two-piece short body modular plug is designed to eliminate the common headaches associated with custom cable assembly. By combining a compact housing with a two-piece architecture, this connector provides the ultimate solution for engineers and technicians who demand both precision and convenience.
The Advantage of the Two-Piece Design
Why choose a two-piece connector? The Cat5e two-piece short body modular plug comes with a dedicated load bar (insert). This allows you to arrange the wires according to the T568A or T568B standard before inserting them into the main plug body. This process significantly reduces assembly errors and ensures that the wire twists remain as close to the contacts as possible, which is critical for minimizing Near-End Crosstalk (NEXT) and maintaining Cat5e performance levels.
Technical Specifications (Mobile-Optimized)
| Property | Specifications |
| Model Category | Cat5e Two-Piece Short Body Modular Plug |
| Interface | 8P8C (RJ45) Unshielded |
| Construction | 2-Piece (Body + Load Bar) |
| Latch Type | Long Arch Latch (Easy-Press) |
| Contact Plating | 50μ” Gold Plating over Nickel |
| Housing Material | High-Clarity Polycarbonate (UL 94V-2) |
| Cable Support | 24 – 26 AWG Solid & Stranded |
| Compliance | RoHS, REACH, TIA/EIA-568-C.2 |

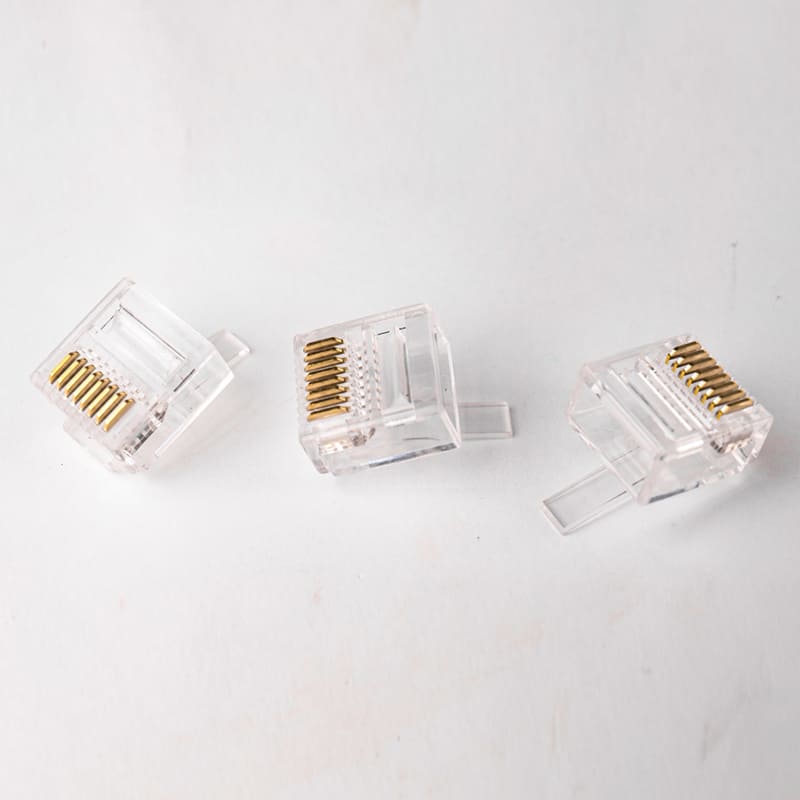

Ergonomic Long Latch and Short Body Innovation
Standard connectors can be difficult to remove once they are seated in a crowded patch panel. Our Cat5e two-piece short body modular plug solves this with an extended “Long Arch Latch.” This ergonomic design provides more leverage, making it incredibly easy to depress the clip even when surrounded by dozens of other cables.
Furthermore, the “Short Body” design is a game-changer for modern slim-line electronics. As devices become thinner, the internal clearance behind the port decreases. This Cat5e two-piece short body modular plug requires less depth, allowing for a tighter bend radius and preventing cable strain in wall plates or compact equipment racks. For detailed wiring standards, you can consult the TIA industry guidelines .

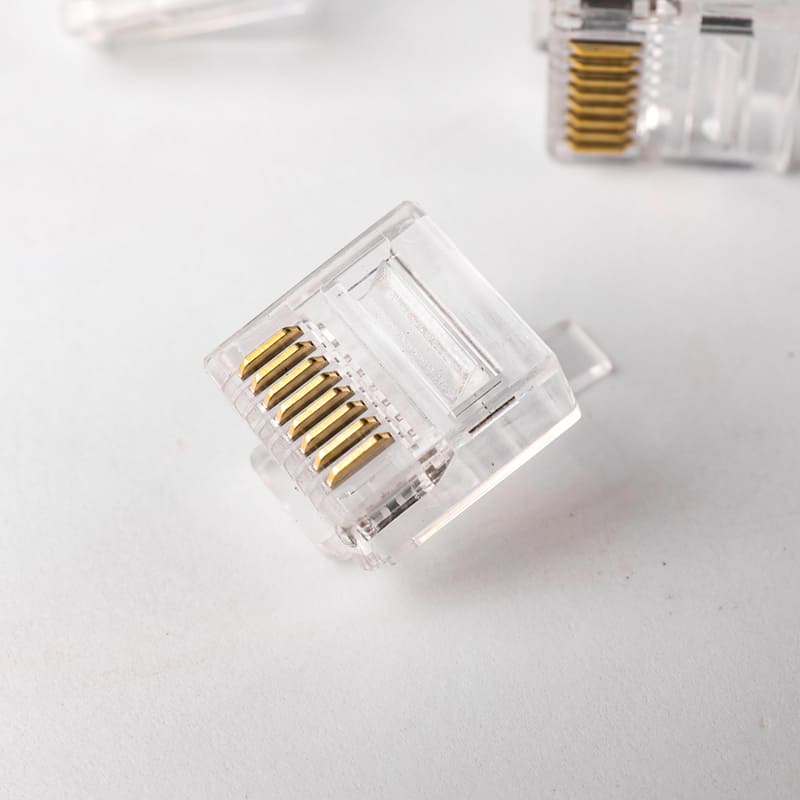

Premium 50μ” Gold-Plated Contacts
Reliability is non-negotiable. Every Cat5e two-piece short body modular plug is fitted with 3-prong phosphor bronze contacts, finished with a genuine 50 micro-inch gold layer. This is not just for show; the thick gold plating ensures that the Cat5e two-piece short body modular plug can withstand humid environments and frequent plugging/unplugging cycles (tested for over 1,000 cycles) without any degradation in signal quality.
Professional Quality Control
At our facility, every batch of the Cat5e two-piece short body modular plug undergoes rigorous QC, including dimensional accuracy checks and latch resilience testing. The clear PC housing is not only durable but also allows for a 100% visual check of the wire seating before the final crimp. We also invite you to explore our full range of modular connectors to find the perfect fit for your project.
