The Industrial Solution for Heavy-Duty Cat7 Infrastructure

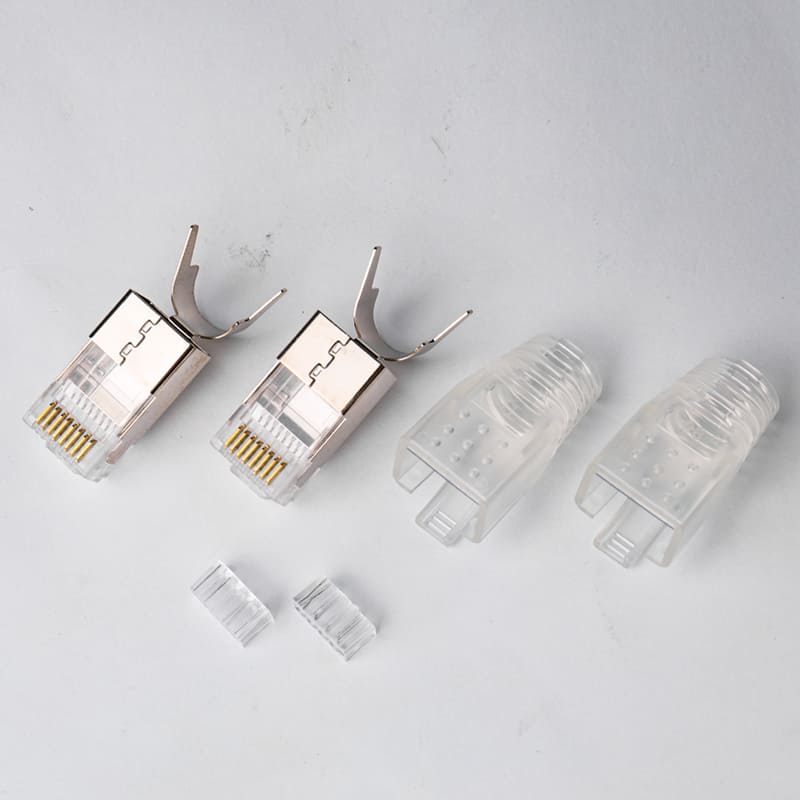

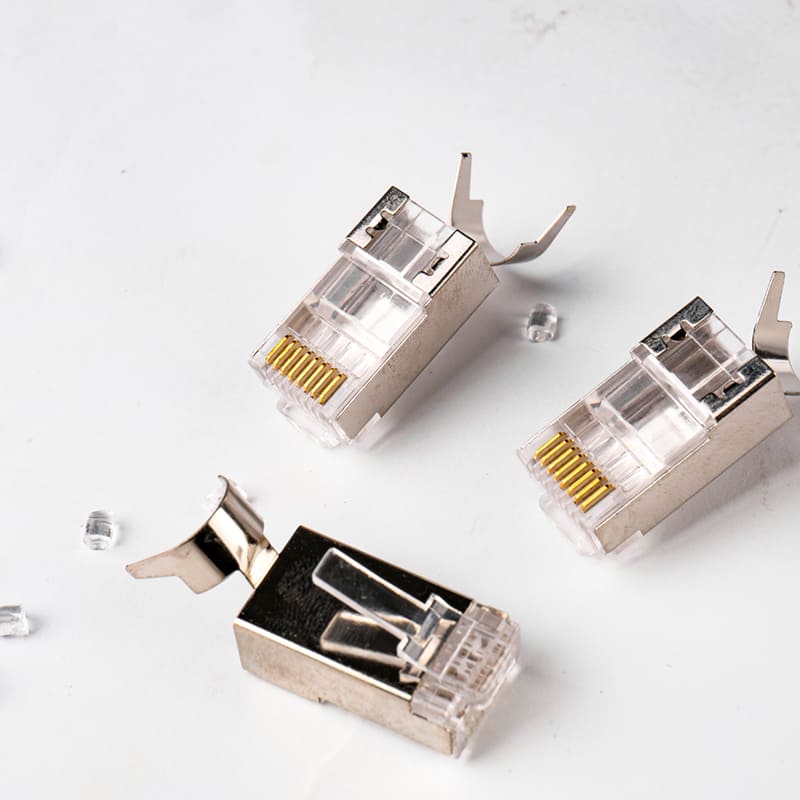

Standard RJ45 connectors are often the “weak link” when installing high-performance Category 7 networks. Because Cat7 cables (especially S/FTP 22AWG) are significantly thicker due to their individual pair shielding and heavy outer jackets, standard 1.1mm plugs simply won’t fit. Our Cat7 Shielded RJ45 Connector with 1.5mm Ultra-Large Wire Hole is the ultimate answer. It allows the thick-insulated wires to glide into position without stripping the internal foil, preserving the cable’s structural integrity and electrical performance.
Why Choose a Gold-Plated Copper Shell?
Most shielded connectors on the market use nickel-plated iron or zinc alloys. While functional, they cannot match the conductivity of our Gold-Plated Copper Shell. Copper is a superior conductor for grounding, and the deep gold plating adds a layer of absolute immunity to salt spray and atmospheric corrosion. This creates a “Faraday Cage” effect, protecting your data from electromagnetic interference (EMI) and radio frequency interference (RFI) in high-noise environments like factories or dense server rooms.
Technical Specifications (Mobile-Optimized Table)
| Feature | Specification Details |
| Product Model | HX-C7-GPC-15-2P |
| Category Rating | Cat7 (Category 7) / Cat8 Compatible |
| Shielding Type | STP / S-FTP (Full Metal Shielded) |
| Shell Material | Pure Copper with Full Gold Plating |
| Wire Hole Size | 1.5mm (Ultra-Large Entry) |
| Structure | Two-Piece (Main Body + Load Bar) |
| Contact Plating | 50μ” Gold over Nickel |
| Wire Compatibility | 22AWG – 23AWG Solid/Stranded |
| Transmission Rate | 10 Gbps (10,000 Mbps) |
| Frequency Support | Up to 600 MHz |
| Safety Compliance | RoHS, REACH, UL 94V-0 Rated |
The Two-Piece Advantage: Speed and Accuracy

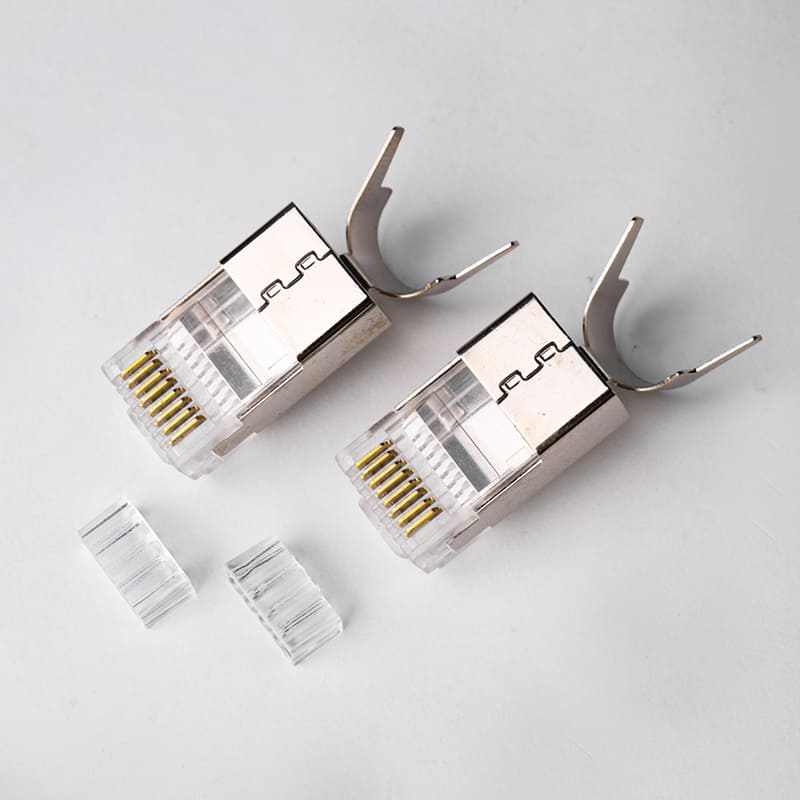

Termination errors are expensive. The two-piece design of this Cat7 Shielded RJ45 Connector utilizes a specialized Load Bar (Liner). This bar allows the technician to pre-arrange the wires into the correct T568A or T568B sequence outside the connector body. Once the wires are trimmed flush against the bar, the entire assembly slides into the housing. This ensures that the twists of the wire pairs are kept as close to the pins as possible, which is a mandatory requirement to pass 10G Fluke testing and minimize Near-End Crosstalk (NEXT).
Engineered for High-Power PoE++ Applications
Modern networks do more than just carry data; they carry power. With the rise of PoE++ (Type 4), connectors must handle up to 90W of power without overheating. The combination of our 50μ” thick gold-plated contacts and the high-conductivity copper shell ensures minimal contact resistance. This prevents heat buildup at the connection point, protecting your high-end equipment—such as 4K PTZ cameras, Wi-Fi 6 access points, and smart LED lighting systems.
Professional Installation Tip
For the most reliable termination, we recommend using a professional shielded crimping tool that can secure both the internal pins and the external metal grounding tail. Ensure the cable’s drain wire is securely wrapped around the jacket and makes firm contact with the gold-plated copper shell to maintain a continuous ground path.
