Overview: The Professional Solution for Thick Shielded Cables
In high-end networking infrastructure, especially in industrial or high-interference environments, shielded Cat6 cabling is a must. However, field installers often face a major frustration: trying to force 23 AWG conductors with thick insulation into a standard Cat6 plug. The Shielded Cat6 RJ45 Connector 1.2mm from HXPLUG is specifically designed to solve this problem. By featuring a precision-engineered 1.2mm internal wire hole size, this modular plug provides the necessary spacing and ease of insertion for high-performance Gigabit cables, ensuring a clean termination every time.
Superior Shielding Against EMI and Crosstalk

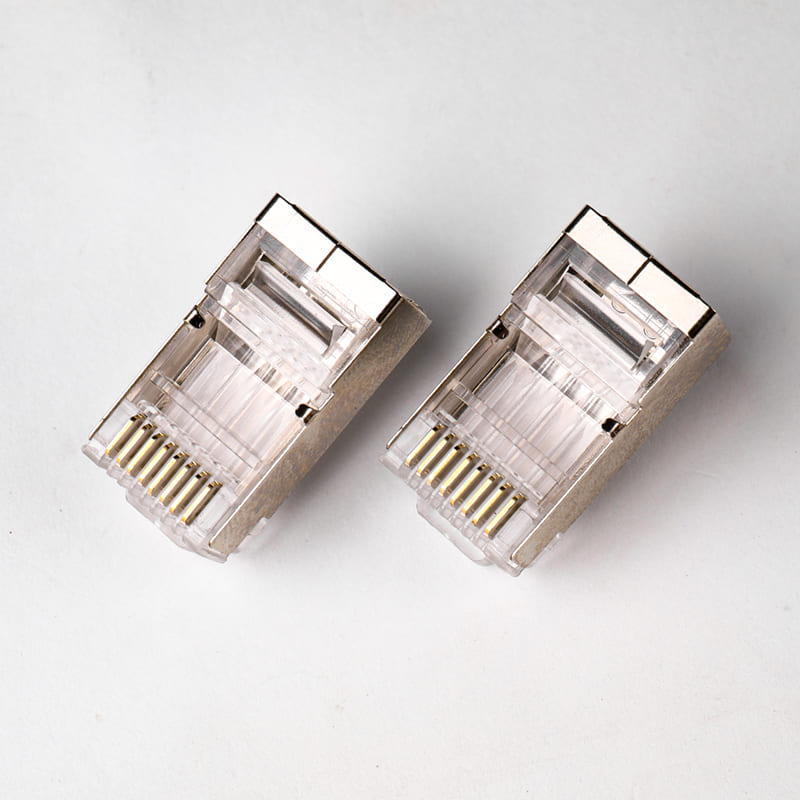

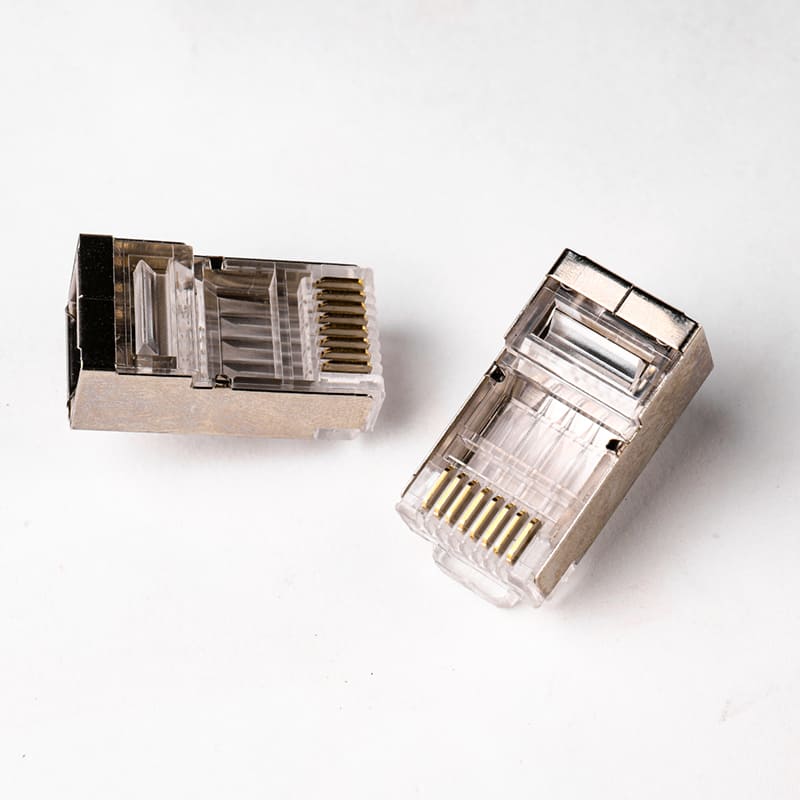

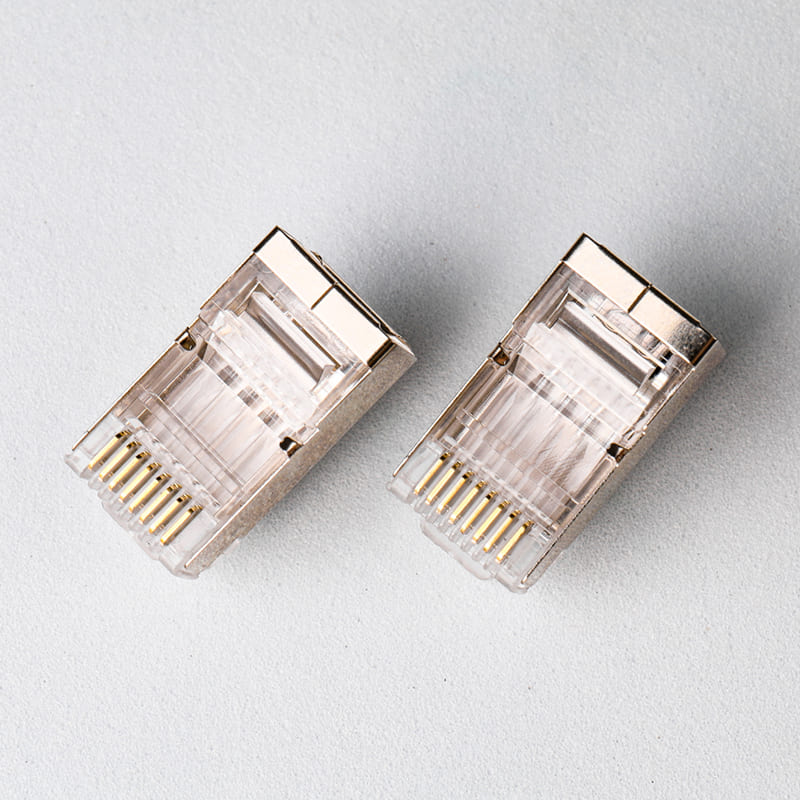

This Shielded Cat6 RJ45 Connector 1.2mm is built with a rugged nickel-plated brass casing. This metal shell acts as a Faraday cage, effectively grounding the cable’s drain wire and shielding the twisted pairs from external electromagnetic interference (EMI) and radio frequency interference (RFI). For B2B clients deploying networks near high-voltage lines, heavy machinery, or wireless equipment, using a high-quality shielded 8P8C plug is essential to maintain signal integrity and eliminate Near-End Crosstalk (NEXT) and “Alien Crosstalk.”
Industrial-Grade 50μ” Gold Plating
Conductivity and long-term reliability are non-negotiable in professional telecommunications. We equip our Shielded Cat6 RJ45 Connector 1.2mm with genuin e 50 micro-inch (50μ”) gold plating directly over the high-purity phosphor bronze contact blades. This thick gold layer creates a gas-tight, corrosion-proof connection point that is immune to oxidation over decades of service. The 3-prong blade design further enhances connectivity by piercing the wire insulation and wrapping around the copper conductor from three sides, creating a larger and more secure contact surface area.
🔧 Technical Specifications of Shielded Cat6 RJ45 Connector 1.2mm
| Product Feature | Technical Specification |
| Product Model | Cat6 Shielded Series (STP/FTP) |
| Hole Size (Wire Entry) | 1.20 mm (Specialized for 23AWG) |
| Interface Structure | 8P8C (Shielded Casing) |
| Contact Material | Phosphor Bronze |
| Gold Plating | Genuine 50μ” (Micron) Gold |
| Shielding Material | Nickel-Plated Brass Shell |
| Housing Material | UL 94V-2 Clear Polycarbonate |
| Performance Rate | 1000Mbps (Gigabit Ethernet) |
| Compliance | RoHS, REACH, FCC, ISO9001 |
Mechanical Durability and Ease of Installation
The mechanical integrity of the connector body is paramount for field durability. We use only 100% virgin Polycarbonate (PC). This material select ion provides exceptional clarity, allowing installers to visually verify the color-coded wire sequence (T568A or T568B) before final termination. Furthermore, the locking latch (tab) is engineered for high flexibility, capable of withstanding extreme 180-degree bends without snapping, reducing wasted time and materials during complex cable management.
Why Source Your Shielded Connectors from HXPLUG factory?
As a B2B-focused manufacturer, HXPLUG understands the rigorous quality control required for large-scale infrastructure projects. Every batch of our Shielded Cat6 RJ45 Connector 1.2mm undergoes extensive automated sorting, salt spray testing for gold plating verification, and insertion cycle testing (>750 cycles). We provide our global partners with competitive bulk pricing, flexible OEM/ODM options, and reliable lead times to keep your critical projects on schedule.
Installation Best Practices
To achieve optimal results with your Shielded Cat6 RJ45 Connector 1.2mm, always ensure the cable’s drain wire is properly connected and secured within the metal strain relief crimp. Maintain the pair twists right up to the contacts to minimize crosstalk and ensure your terminated cable assembly passes professional Fluke field-testing criteria every time.
