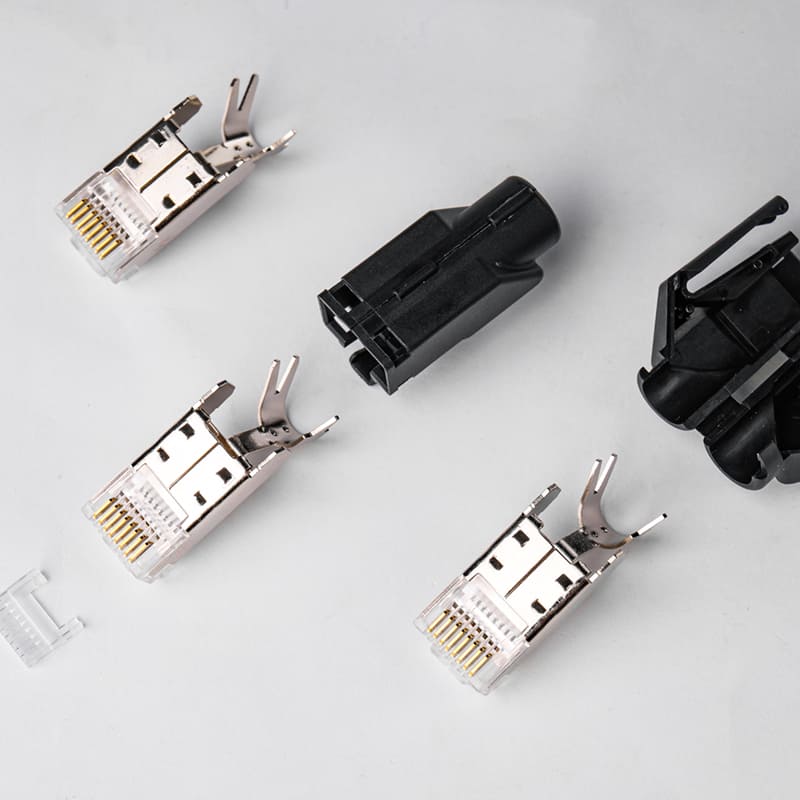

German-style 3-piece industrial modular plug components: body, load bar, boot

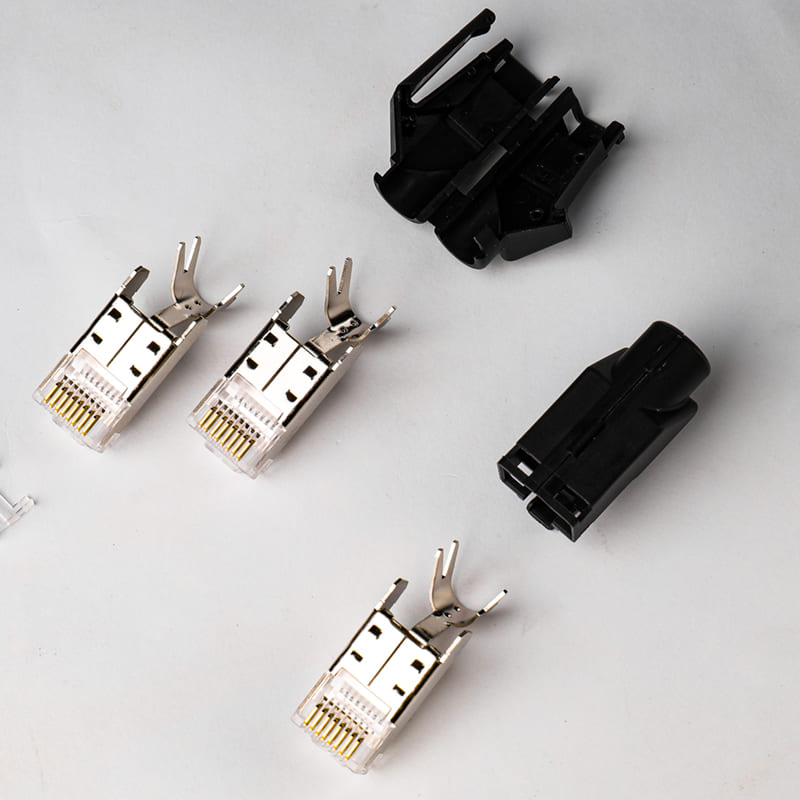

50 micron gold plated pins of German-style industrial 8P8C connector

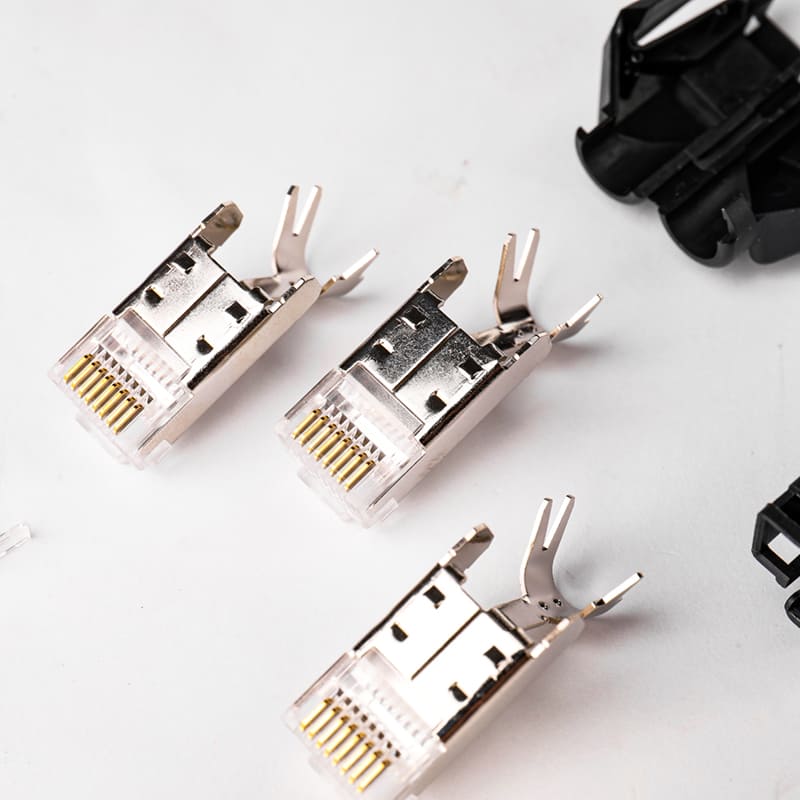

Shielded metal shell of 3-piece industrial modular plug for EMI protection

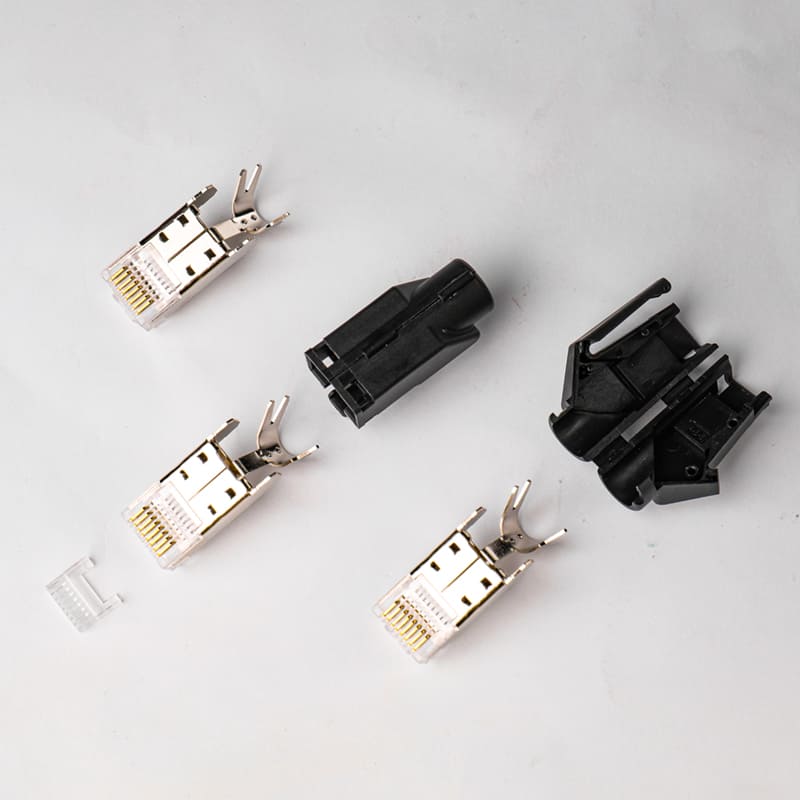

Assembled German-style 3-piece modular plug with strain relief boot

German-Style 3-Piece Industrial 8P8C Modular Plug: High-Precision Shielded STP Connector with Separate Load Bar and Snagless Boot

Precision 3-Piece Architecture: Consists of a shielded main body, an independent load bar for easy wiring, and a professional-grade strain relief boot.
German Industrial Standard: Engineered for high-end European industrial networks, the German-style 3-piece industrial modular plug ensures superior stability.
Superior EMI Shielding: The nickel-plated copper alloy shell provides 360° protection against electromagnetic interference in noisy environments.
High-Density 50μ” Gold Plating: Features 50 micro-inch gold-plated contacts to ensure maximum data throughput and corrosion resistance.
Optimized for Large Cables: Specifically designed to handle 23-24 AWG shielded cables, making it ideal for Cat6 and Cat6A industrial applications.
Integrated Snagless Boot: The included custom-fit boot protects the latch and provides excellent strain relief for long-term durability.

Description

Professional Termination with the German-Style 3-Piece Industrial Modular Plug

In the demanding world of industrial Ethernet, where downtime is not an option, the German-style 3-piece industrial modular plug stands as the benchmark for reliability and precision. Unlike standard one-piece connectors that can be difficult to assemble with thick industrial cables, this three-piece system is designed to provide a perfect termination every time. By separating the connector into a main body, a load bar, and a protective boot, we offer a solution that meets the highest standards of German engineering.

The Advantage of the Three-Component System

The secret to the performance of our German-style 3-piece industrial modular plug lies in its logical construction:

Shielded Main Body: Crafted from high-impact Polycarbonate and wrapped in a heavy-duty nickel-plated brass shell, this component ensures mechanical strength and total signal isolation.
Precision Load Bar (Insert): This crucial piece allows the technician to pre-align the wire pairs accurately before insertion. It reduces the untwisting of pairs to a minimum, which is essential for passing rigorous Fluke tests and maintaining signal integrity.
Dedicated Strain Relief Boot: The “Third Piece” is a high-quality boot that fits snugly over the metal shell. It not only provides a professional “snagless” finish but also protects the cable-to-plug transition from mechanical stress and vibration.

Technical Specifications (Mobile-Ready Table)

Property	Details
Product Type	German-Style 3-Piece Industrial Modular Plug
Interface	8P8C (RJ45)
Components	Shielded Body + Load Bar + Boot
Shielding Material	Nickel-Plated Copper Alloy / Brass
Contact Plating	50μ” Gold Plating over Nickel
Cable Support	23 – 24 AWG Shielded (STP/FTP/SFTP)
Housing Material	UL-Listed High-Clarity Polycarbonate
Insertion Cycles	Guaranteed > 1,200 Cycles

Engineered for High-Interference Environments

Modern factories and data centers are saturated with EMI (Electromagnetic Interference). The German-style 3-piece industrial modular plug utilizes its full-metal casing as a Faraday cage to neutralize external noise. This protection is paired with our signature 50 micro-inch gold plating on the phosphor bronze contacts. While competitors often use cheaper 3μ” or 6μ” plating, our 50μ” layer ensures that the German-style 3-piece industrial modular plug remains free from oxidation and maintains low contact resistance for decades, even in humid or chemically active industrial settings. For more on international standards, you can refer to the TIA/EIA-568-D guidelines .

Versatility and Industrial Compliance

The German-style 3-piece industrial modular plug is the preferred choice for a wide array of mission-critical applications:

Industrial Automation: Connecting PLCs and HMIs on factory floors with high vibration.
Data Center Infrastructure: Backbone cabling that requires 100% reliability and shielding.
Security & Surveillance: Terminating high-end IP cameras in outdoor or shielded environments.
Medical Diagnostic Imaging: Ensuring clear signal transmission for high-resolution medical data.

At our facility, every German-style 3-piece industrial modular plug undergoes rigorous quality inspections, including a salt spray test for the metal shell and a resilience test for the locking latch. We invite you to explore our complete range of industrial-grade modular plugs to find the perfect solution for your high-performance network needs.
