Key Features & Highlights
-
Cat7 10Gbps High-Speed Performance
Specifically tailored for thick Cat7/Cat6A network cables (23AWG–24AWG). Thick gold-plated 3-prong contact blades penetrate wires effectively, ensuring minimal contact resistance and full support for 10 Gbps speeds at 600 MHz bandwidth.
-

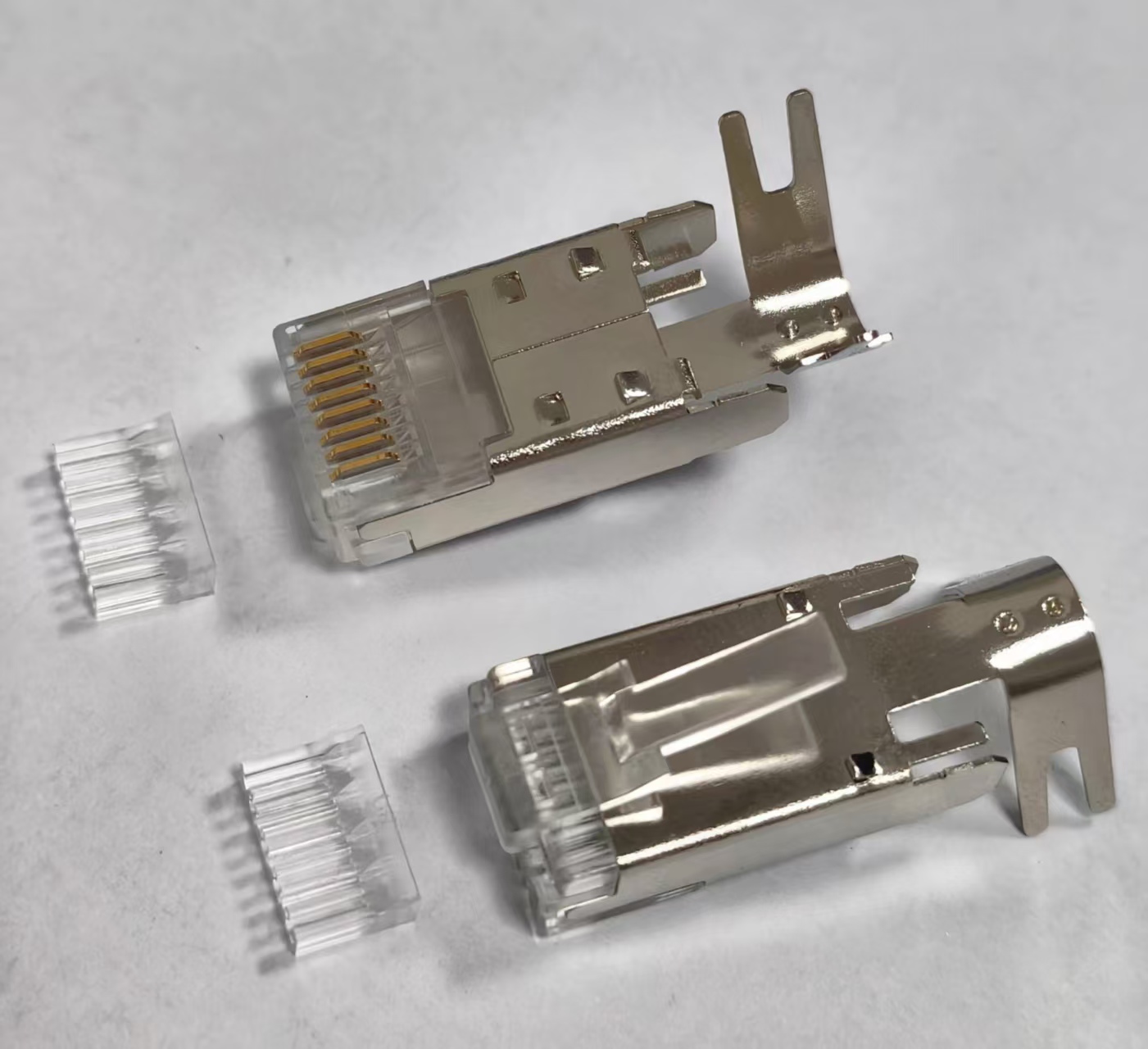

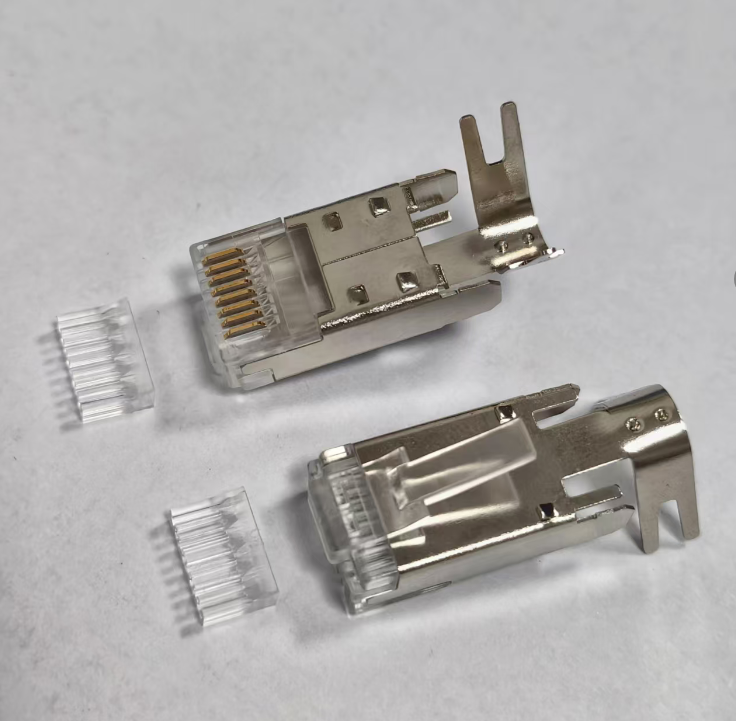

Fully Enclosed Nickel-Plated Shielding
Features a 360° full-metal brass housing (nickel-plated) that completely encompasses the connector body, providing maximum protection against Electromagnetic and Radio Frequency Interference (EMI/RFI).
-
Metal Tail Clamp for Superior Strain Relief
The built-in crimpable tail clip securely clamps down on the outer cable jacket and drain wire/shielding braid. This ensures a permanent ground connection and exceptional resistance against pull-out forces, bending, and heavy vibration.
-
Separate Load Bar for Precision Alignment
Includes a transparent wire insert (load bar) that simplifies wire sequence alignment, minimizes untwisted pair lengths, and reduces Near-End Crosstalk (NEXT) for fast, error-free assembly.
Technical Specifications
| Specification | Details |
| Connector Type | Cat7 / Cat6A Industrial Shielded RJ45 Plug |
| Housing Construction | Fully enclosed nickel-plated brass shell with tail clip |
| Contact Pins | 3-prong phosphor bronze with thick 50μ” gold plating |
| Speed & Bandwidth | 10 Gbps / 600 MHz |
| Cable Compatibility | Large-diameter Cat7 / Cat6A shielded cables |
| Shielding & Grounding | 360° Full Metal Shield + Tail Clip Grounding |
Target Applications
-
Industrial Automation & Control Systems: Connecting PLCs, industrial Ethernet switches, and control panels.
-
Data Centers & Enterprise Infrastructure: Custom 10G patch cord assembly, server racks, and high-density cabling.
-
Vibration & High-Noise Environments: Heavy machinery, robotics, dynamic drag chains, and areas with severe EMI noise.
