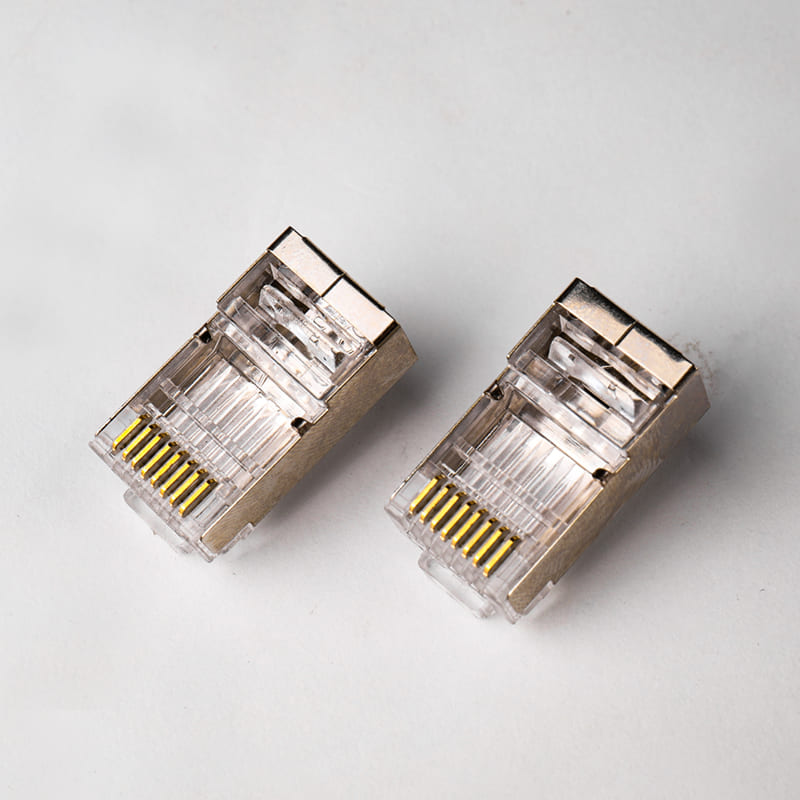

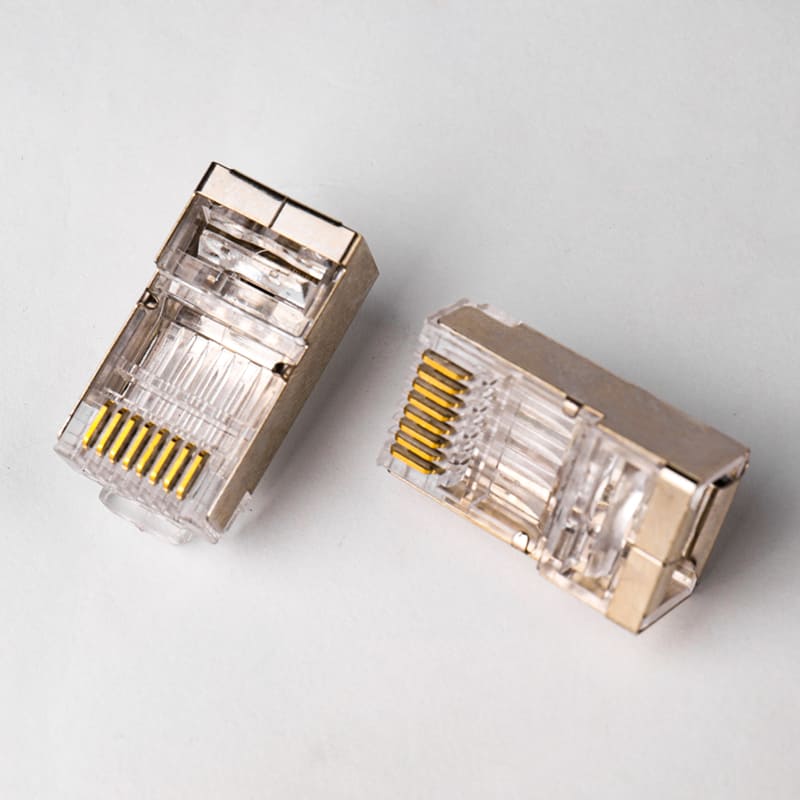

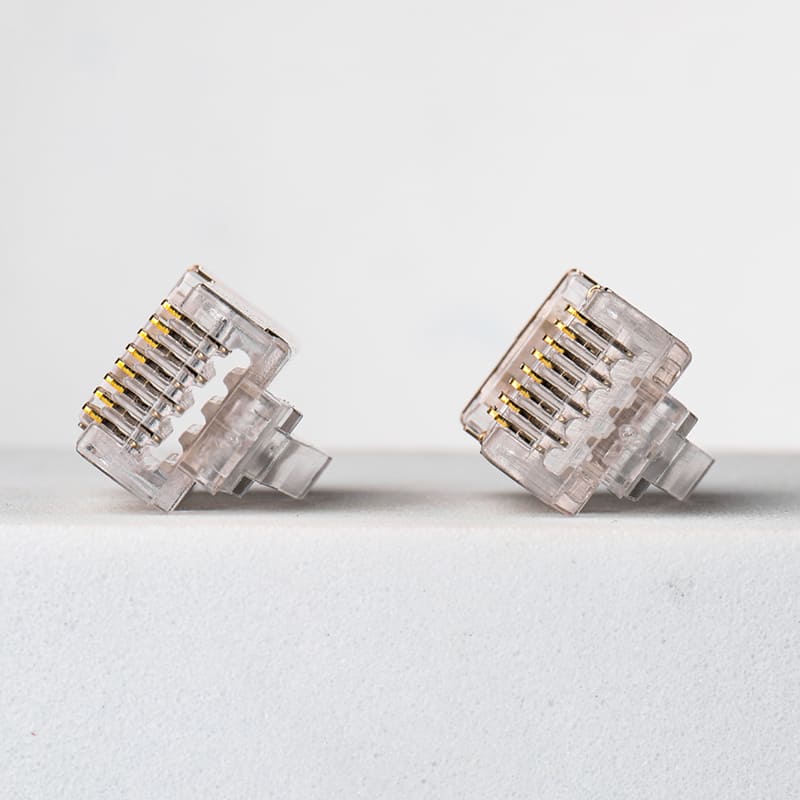

Efficiency Meets Excellence: The Cat6 Shielded Pass-Through RJ45 Connector
The Cat6 Shielded Pass-Through RJ45 Connector is designed for networking professionals who demand both speed and reliability. In the past, terminating shielded Category 6 cables was a tedious process, often leading to wasted connectors due to wire misalignment. Our pass-through technology eliminates this frustration. By allowing the wires to slide through the end of the plug, you can visually verify your wiring order and ensure the cable jacket is fully seated deep within the connector before you pull the trigger on your crimper.
Advanced Staggered Double-Row Geometry
What sets the Cat6 Shielded Pass-Through RJ45 Connector apart is its internal staggered (4-up/4-down) pin arrangement. In standard Cat5e or lower-end Cat6 plugs, the wires are often aligned in a single flat row. At the high frequencies (up to 250MHz) used by Cat6 networks, this proximity causes signal bleeding and crosstalk. Our staggered design maintains optimal wire separation, ensuring your network meets the strict requirements for 10-Gigabit Ethernet (10GBASE-T) over short distances and reliable Gigabit performance over 100 meters.
Technical Specifications (Mobile-Optimized)
| Feature | Specification Details |
| Product Model | HX-C6-STP-PT-STG |
| Connector Type | Pass-Through RJ45 8P8C |
| Category Rating | Category 6 (Cat6) |
| Shielding | STP / FTP (Shielded) |
| Internal Design | Staggered Double-Row (4 Up / 4 Down) |
| Gold Plating | 50μ” (Micron) over Nickel |
| Housing Material | High-Impact Clear Polycarbonate (UL 94V-2) |
| Shield Shell | Nickel-Plated Copper Alloy |
| Wire Gauge Support | 23AWG – 24AWG Solid/Stranded |
| Mating Cycles | ≥ 750 Insertions |
| Transmission Rate | 1000 Mbps – 10 Gbps |
The Power of 50μ” Gold Plating
Durability is essential for long-term network stability. Our Cat6 Shielded Pass-Through RJ45 Connector utilizes industrial-grade 50-micron gold plating on the contacts. This is the highest standard in the industry, far exceeding the 3μ” or 15μ” alternatives found in consumer-grade plugs. This thickness prevents the phosphor bronze pins from oxidizing in humid environments and ensures a low-resistance connection that can withstand over 750 insertions and withdrawals without signal degradation.
Step-by-Step Installation Guide
terminating your Cat6 Shielded Pass-Through RJ45 Connector has never been easier:
-
Preparation: Strip about 40mm of the outer jacket from your Cat6 STP cable.
-
Shielding: Fold back the foil shield and wrap the drain wire around the cable jacket.
-
Alignment: Untwist the pairs and organize them according to the T568B or T568A standard.
-
Insertion: Slide the wires into the Cat6 Shielded Pass-Through RJ45 Connector. The staggered channels will guide the wires into the 4-up/4-down pattern.
-
Verify: Check the front of the plug to ensure the colors are correct.
-
Crimp & Trim: Use a dedicated pass-through shielded crimping tool to crimp the pins and shear off the excess wire in one smooth motion.
Applications for High-Performance Networking
The Cat6 Shielded Pass-Through RJ45 Connector is the ultimate choice for high-noise environments where data integrity is paramount:
-
Data Centers: For high-density rack-to-rack patching.
-
Industrial Automation: Protecting data signals from heavy machinery EMI.
-
Smart Home Installations: Reliable 4K video streaming and high-speed gaming connections.
-
Security Systems: High-resolution 4K/8K IP cameras using Power over Ethernet (PoE+).
By integrating our Cat6 Shielded Pass-Through RJ45 Connector into your project, you are ensuring a future-proof, high-bandwidth connection that is as easy to install as it is powerful.
