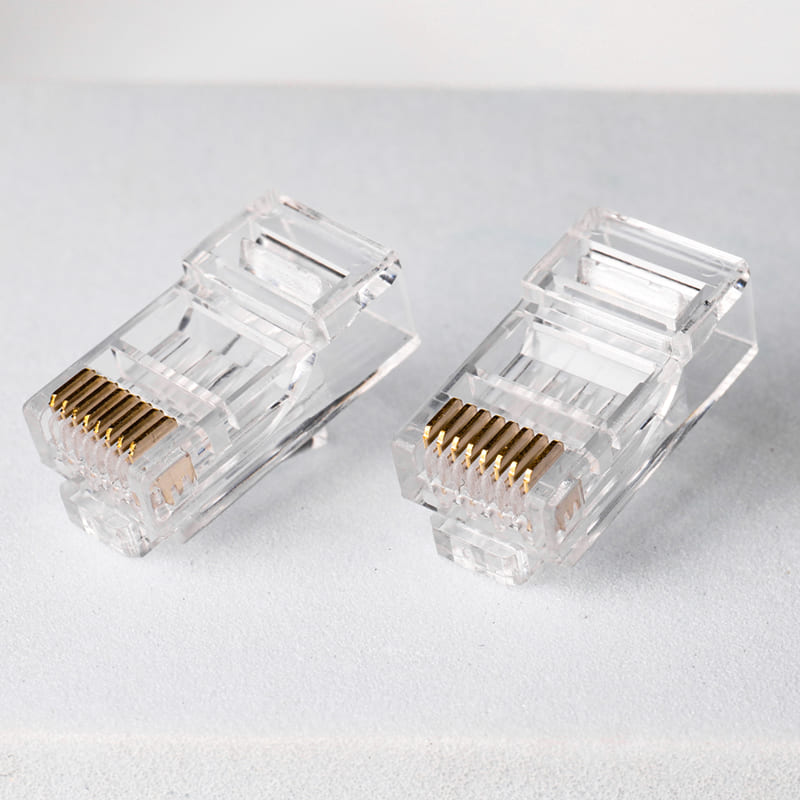

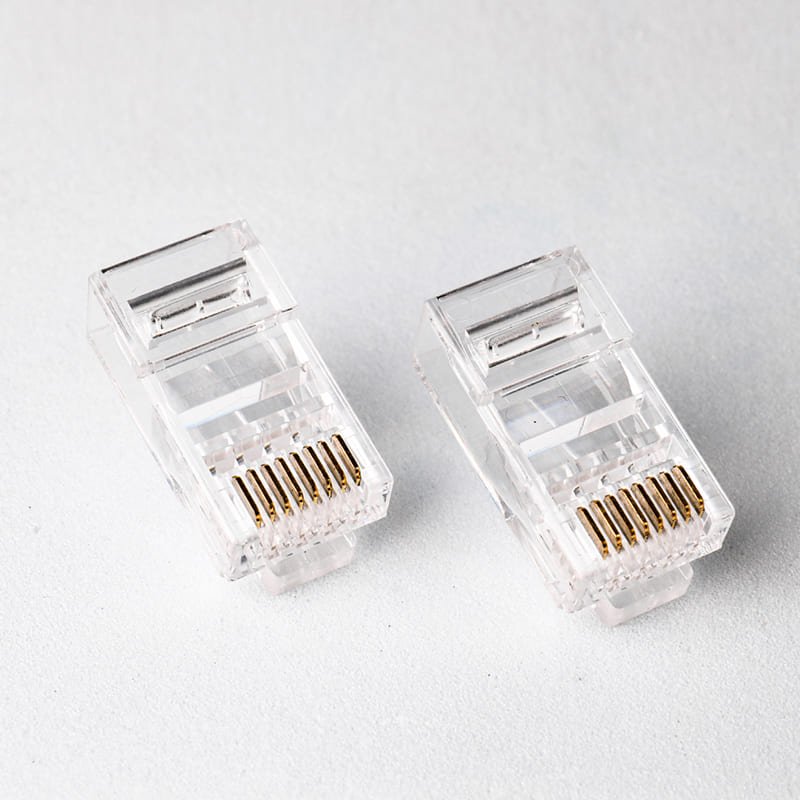

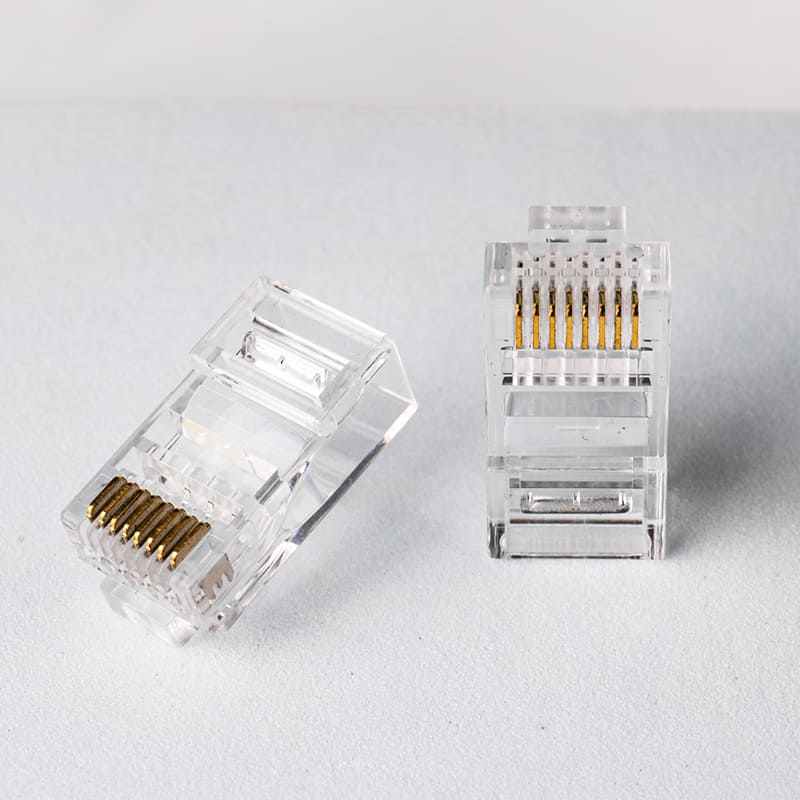

“Experience unparalleled network stability and speed with our premium RJ45 Cat6 Modular Plug. Designed for professional IT installations, data centers, and demanding smart home networks, this ultimate 8P8C connector provides the precision and long-lasting durability required for high-performance Gigabit Ethernet environments.”
Engineered for Category 6 Gigabit Networks
When building a reliable network, choosing the right RJ45 Cat6 Modular Plug is just as important as selecting the high-quality cable itself. Unlike standard Cat5e plugs, this connector is built to handle the thicker insulation and higher frequency demands of Category 6 cables. The unique staggered hole design—where the wires sit in an alternating up-and-down pattern—is crucial for separating the wire pairs at the point of termination. This layout significantly reduces Near-End Crosstalk (NEXT) and ensures that your network can consistently deliver true Gigabit speeds without data loss or signal interference.
Key Advantages of Our Cat6 8P8C Connector:
-
Tripoint-Prong Contacts: The advanced 3-prong design pierces both solid and stranded wires deeply, creating a larger contact surface area for superior signal transmission compared to traditional 2-prong plugs.
-
Thick Gold Plating (50u”): We never compromise on connection points. Our 50u” gold plating offers industry-leading protection against oxidation, ensuring a reliable connection for your RJ45 Cat6 Modular Plug even in humid or harsh environments over years of continuous use.
-
Optimized Wire Holes: Specially sized to perfectly accommodate the thicker copper cores and insulation typically found in premium Cat6 cables (23 AWG to 24 AWG).
-
Shatterproof Latch: The retention clip is rigorously tested for extreme flexibility and strength, ensuring a satisfying ‘click’ into the network switch or keystone jack without snapping off over time.
Typical Application Scenarios
Our versatile RJ45 Cat6 Modular Plug is widely trusted by networking professionals across various industries. It is the perfect termination solution for:
-
Enterprise Data Centers: Ensuring high-speed server-to-switch connections.
-
Office Networking: Wiring workstations, IP phones, and network printers reliably.
-
Smart Home Installations: Distributing 4K/8K media streaming and smart device connectivity seamlessly.
-
Security Systems: Providing stable Power over Ethernet (PoE) for CCTV and IP camera setups.
Technical Specification Table
| Component | Material & Performance Details |
| Model Number | HX-RJ45-CAT6-UTP |
| Connector Type | RJ45 (8P8C) Unshielded (UTP) |
| Supported Category | Cat6 (Backward compatible with Cat5e) |
| Contact Material | Pure Copper / Phosphor Bronze |
| Plating | 50u” Gold Plated (Options for 3u”, 15u”, 30u” available) |
| Pin Design | 3-Prong (Suitable for Solid & Stranded wire) |
| Wire Layout | Staggered (Up/Down Configuration) |
| Housing Material | Clear Polycarbonate (PC), UL94V-0 / V-2 |
| Wire Gauge | 23 AWG – 24 AWG |
Frequently Asked Questions (FAQ)
Q1: Can I use this specific RJ45 Cat6 Modular Plug on a Cat5e cable?
Yes, our RJ45 Cat6 Modular Plugs are fully backward compatible with Cat5e cables. However, because Cat5e wires are slightly thinner, you must ensure they are pushed firmly to the end of the staggered channels before crimping to guarantee a solid connection.
Q2: What is the primary difference between a staggered design and a flat design?
Cat6 cables have thicker internal wires than Cat5e. If laid completely flat, they would not fit inside the standard RJ45 housing width. The staggered (up/down) design allows all 8 wires to fit comfortably while increasing the distance between them, which drastically reduces electromagnetic interference and crosstalk.
Q3: Do I need a special crimping tool for this plug?
While a standard RJ45 crimping tool will work, we strongly recommend using a high-quality crimper designed specifically for 8P8C connectors. This ensures all 8 pins are pressed down evenly and the strain relief is securely clamped for maximum durability.
