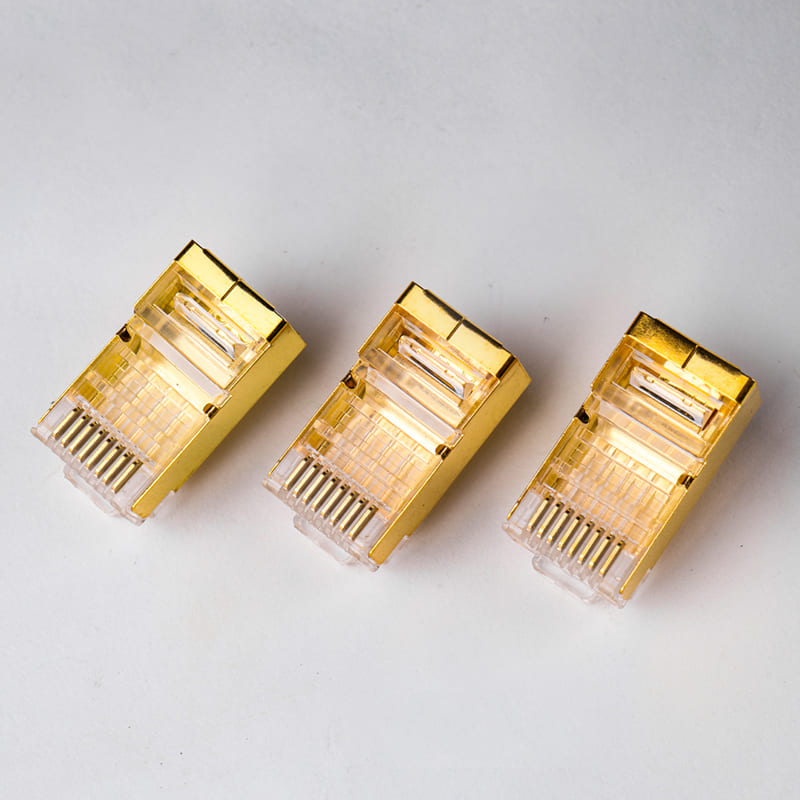

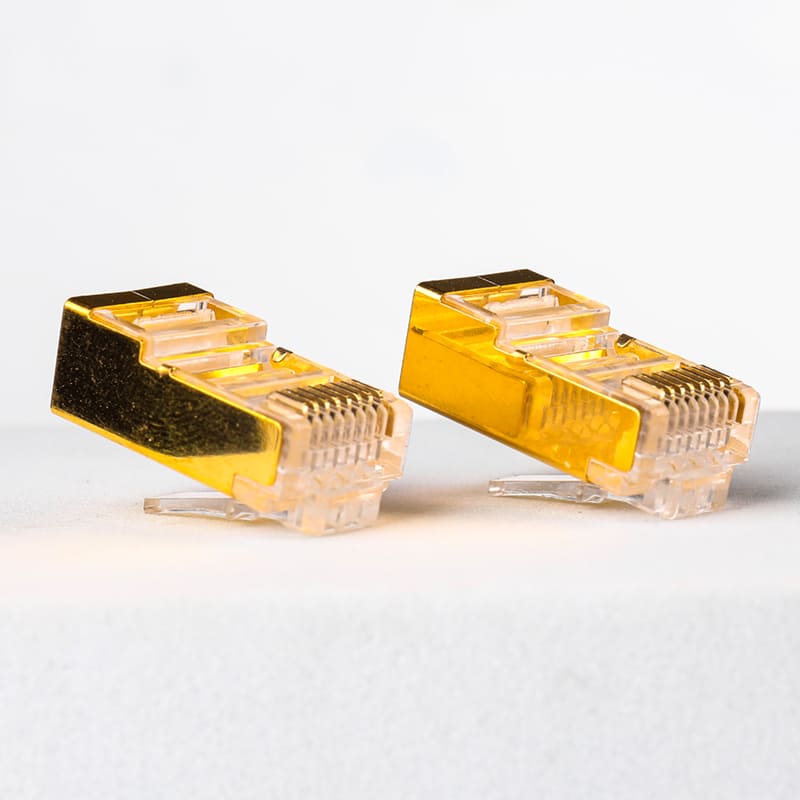

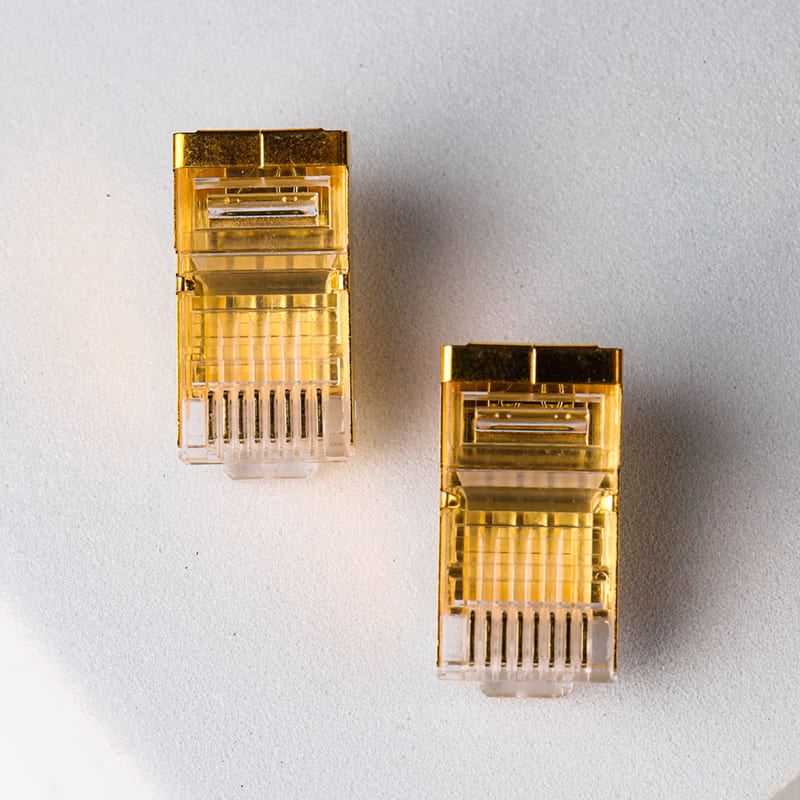

The Ultimate Solution for Thick Cabling: Cat6 1.1mm Gold Shielded Modular Plug
As networking technology evolves, Ethernet cables are becoming thicker and more robust to support higher speeds and better shielding. Many standard Cat6 connectors fail during installation because the wire insulation is too thick for traditional small holes. Our Cat6 1.1mm gold shielded modular plug is the definitive answer to this problem. With a precision-engineered 1.1mm internal wire hole, this connector allows for smooth entry of thick 23 AWG or 24 AWG cores, ensuring your assembly process is efficient and error-free.
Why Choose the 1.1mm Wire Hole Specification?
Modern high-performance Cat6 cables often feature thicker PE or PVC insulation to reduce crosstalk and meet 10-Gigabit standards. Standard RJ45 plugs usually have a 0.95mm or 1.0mm hole, which can lead to damaged wires or “failed crimps” when forced. The Cat6 1.1mm gold shielded modular plug provides that critical extra space, maintaining the twist of the pairs as close to the contacts as possible. This is essential for passing rigorous Fluke certification tests and ensuring long-term signal stability.
Technical Specifications (Mobile-Optimized Table)
| Property | Details |
| Product Model | Cat6 1.1mm Gold Shielded Modular Plug |
| Interface Type | 8P8C (RJ45) STP |
| Wire Hole Diameter | 1.1 mm (Specially for Thick Cat6) |
| Shielding Shell | Gold-Plated Copper Alloy / Brass |
| Contact Plating | Genuine 50μ” Gold over Nickel |
| Housing Material | UL-Listed High-Clarity Polycarbonate |
| Cable Support | 23 – 24 AWG Solid & Stranded (STP/FTP) |
| Operating Temp | -40°C to +85°C |
| Certifications | RoHS, REACH, TIA/EIA-568 Standards |
Superior EMI Protection with Gold Shielding
Beyond its size advantages, the Cat6 1.1mm gold shielded modular plug is a powerhouse of performance. The gold-plated metal shell does more than just look premium; it acts as a highly conductive Faraday cage, neutralizing electromagnetic interference (EMI) and radio frequency interference (RFI). This is particularly important in industrial environments, data centers, or high-end home theaters where electrical noise can degrade data packets and reduce speeds.
Industry-Leading 50μ” Gold Contact Technology
At the heart of the Cat6 1.1mm gold shielded modular plug are its contacts. We utilize high-purity phosphor bronze with a true 50 micro-inch gold layer. Unlike cheaper “gold flash” alternatives that oxidize within months, our Cat6 1.1mm gold shielded modular plug maintains low contact resistance for its entire lifespan. The 3-prong design creates multiple points of contact with the wire core, ensuring that whether you are using solid core industrial cable or flexible patch cords, the connection remains gas-tight and vibration-resistant.
Versatile Professional Applications
This Cat6 1.1mm gold shielded modular plug is the preferred choice for several high-stakes sectors:
-
Professional Audio/Video: Ensuring clean, noise-free signals for 4K/8K video streaming and high-fidelity audio.
-
Industrial Automation: Terminating thick, shielded industrial Ethernet cables in environments with heavy machinery.
-
Data Center Infrastructure: Backbone cabling that requires high-gold plating and superior shielding for 24/7 uptime.
-
High-End Gaming & Labs: Perfect for enthusiasts building custom-length cables with premium thick-jacketed Cat6.
As a dedicated manufacturer, we subject every Cat6 1.1mm gold shielded modular plug to a battery of tests, including salt spray analysis for the gold shell and tension tests for the locking latch. We invite you to explore our full range of Cat6 modular connectorsto find the right fit for your project. By choosing our Cat6 1.1mm gold shielded modular plug, you are investing in a product that combines luxury aesthetics with uncompromising industrial performance.
